2‑Phase Hybrid Stepper Motors with Brake High Efficiency

Safety and Position Holding

High-efficiency 2-phase hybrid stepper motors with brake include a locking mechanism that holds the shaft in place even when power is off. This makes them ideal for lifting equipment, safety systems, or any application where falling or unintended motion must be prevented.

Operational Benefits and Energy Efficiency

Alongside maximum holding reliability, Ever Motion Solutions’ motors with built-in brake also deliver efficient operation. The integrated brake eliminates the need for extra components, simplifying installation and saving space. This results in a complete system ready to meet the demands of safety and precision on modern production lines.


Code

Flange

Bipolar
holding
torque
[Ncm]
min.

Step
angle
[°]

Rated
current
[A/ph]

Shaft

Rotor
inertia
[g.cm²]

Depth
[mm]

Feedback

Class
protection

Brake [Nm]
MT17HE18017B4F1NEMA 17 - 42 mm square4501.8170Double shaft with brake mounted6943.7 IP200.3

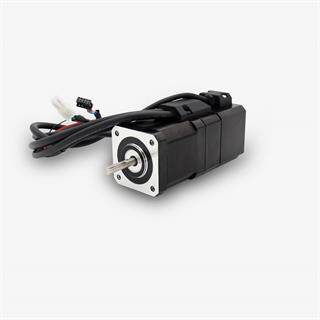

MT17HE19020H401NEMA 17 - 42 mm square7701.8200Double shaft with encoder and brake mounted7748.1Incremental encoderIP500.5

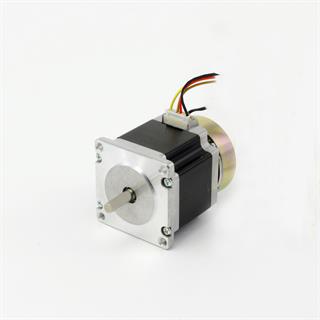

MT23HE22015B4F1NEMA 23 - 56 mm square10001.8150Double shaft with brake mounted29053.3 IP401

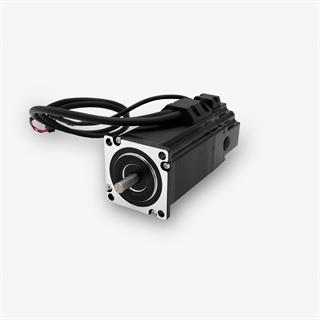

MT23HE31050F401NEMA 23 - 56 mm square20001.8500Double shaft with brake mounted48076.5 IP402

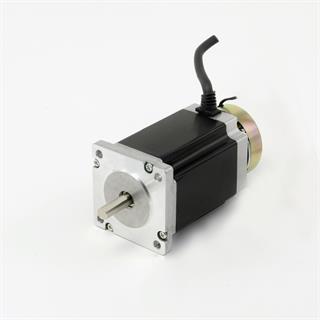

MT24HE35040B4F1NEMA 24 - 60 mm square30001.8400Double shaft with brake mounted90085.5 IP201

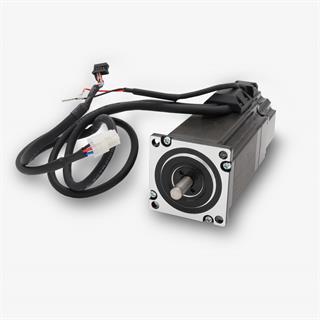

MT23HE31050H401NEMA 23 - 56 mm square20001.8500Single shaft with encoder and brake mounted48076.5Incremental encoderIP402

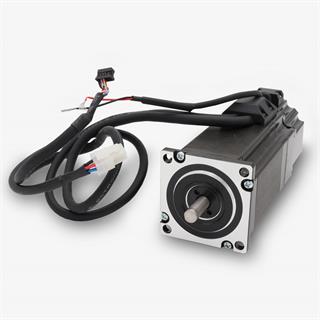

MT24HE35050H403NEMA 24 - 60 mm square30001.8500Double shaft with encoder and brake mounted90086.0Incremental encoderIP402
MT34HE26068B4F1NEMA 34 - 86 mm square41001.8680Double shaft with brake munted and protrusion over the brake95067.5 IP204

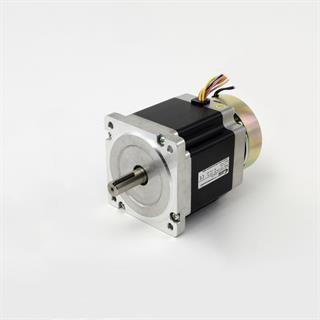

MT34HE31042B8F1NEMA 34 - 86 mm square59401.8420Double shaft with brake mounted140078.5 IP204

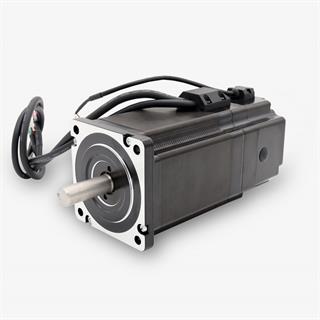

MT34HE44060H401NEMA 34 - 86 mm square82001.8600Double shaft with encoder and brake mounted3800112.5Incremental encoderIP405

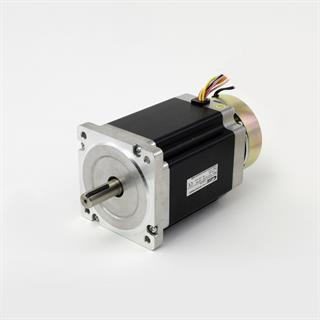

MT34HE47060B8F1NEMA 34 - 86 mm square118001.8600Double shaft with brake mounted2500118.5 IP304

Search

Search
Technologies

High Efficiency stepper motors are designed and manufactured to optimize the motors performance. High efficiency stepper motors have up to 40% more torque than standard stepper motors.
