2‑Phase Hybrid Stepper Motors Waterproof High Efficiency

Protection from Water and External Agents

Waterproof high-efficiency 2-phase hybrid stepper motors are designed for use in harsh environments where moisture, dust, or splashing water can be an issue. Thanks to seals and specialized materials, they maintain full performance even under extreme conditions, preserving internal components and ensuring reliable operation.

Efficiency and Reliability in Critical Conditions

Waterproof features combine with the high efficiency of Ever Motion Solutions’ hybrid motors to deliver precise positioning control and constant torque, even under changing climatic conditions. This combination is particularly beneficial in applications such as washing systems, food production lines, or water treatment plants, where strength and efficiency must go hand in hand.


Code

Flange

Bipolar
holding
torque
[Ncm]
min.

Step
angle
[°]

Rated
current
[A/ph]

Shaft

Rotor
inertia
[g.cm²]

Depth
[mm]

Class
protection

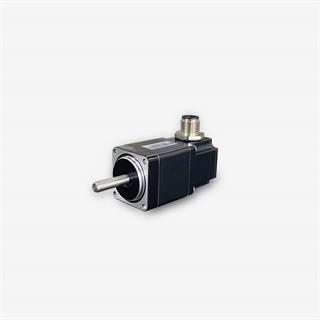

MT11HE10007M4LCNEMA 11 - 28 mm square7.11.80.67Single shaft924.2IP65

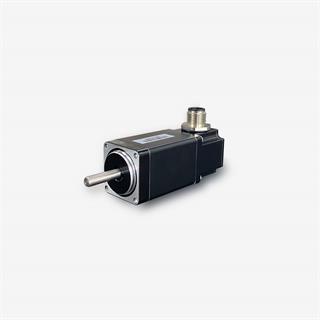

MT11HE17007M4LCNEMA 11 - 28 mm square12.71.80.67Single shaft1843.5IP65

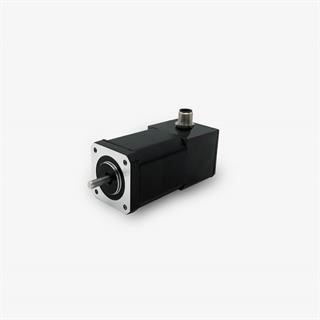

MT17HE24009M4L1NEMA 17 - 42 mm square71.01.80.85Single shaft11585.0IP65

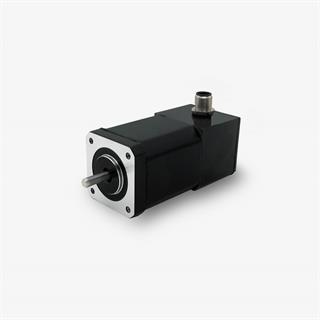

MT17HE24028M4LCNEMA 17 - 42 mm square86.01.82.80Single shaft11551.0IP65
MT23HE17004M6P1NEMA 23 - 56 mm square52.01.80.40Single shaft17058.9IP65
MT23HE22030M4P1NEMA 23 - 56 mm square140.01.83.00Single shaft28069.9IP65
MT23HE22028M8PNEMA 23 - 56 mm square140.01.82.80Single shaft28070.2IP65

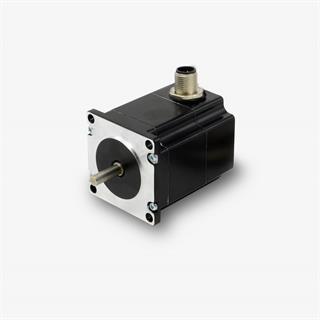

MT23HE22042M4L1NEMA 23 - 56 mm square120.01.84.20Single shaft30053.3IP65

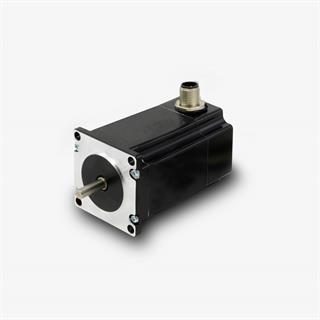

MT23HE31042M4LCNEMA 23 - 56 mm square220.01.84.20Single shaft516.086.5IP65
MT23HE31042M4P1NEMA 23 - 56 mm square200.01.84.20Single shaft48093.9IP65
MT23HE31042B4P1NEMA 23 - 56 mm square220.01.84.20Double shaft with encoder fixing holes provision48094.2IP65
MT24HE35030M401NEMA 24 - 60 mm square270.01.83.00Single shaft810855.0IP65
MT34HE31084M4LCNEMA 34 - 86 mm square450.01.88.40Single shaft140078.5IP65

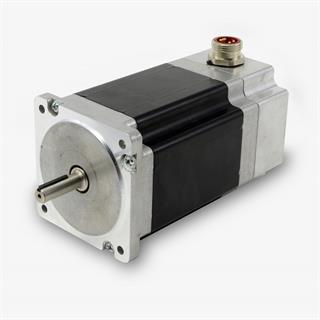

MT34HE47060M4LCNEMA 34 - 86 mm square850.01.86.00Single shaft3800118.5IP65
MT34HE47060B4LCNEMA 34 - 86 mm square850.01.86.00Single shaft2500118.5IP65
MT34HE47120M4LCNEMA 34 - 86 mm square1180.01.812.00Single shaft2500118.5IP65

Search

Technologies

High Efficiency stepper motors are designed and manufactured to optimize the motors performance. High efficiency stepper motors have up to 40% more torque than standard stepper motors.
