2‑Phase Hybrid Stepper Motors with Gearbox High Efficiency

Benefits of Gearbox Integration

High-efficiency 2-phase hybrid stepper motors with gearbox combine the precision of stepper control with the ability to achieve higher output torque. The gearbox adapts speed and driving force to application requirements, minimizing vibrations and enhancing system stability.

Optimized Transmission and Performance

Using high-quality materials and precision-engineered design, the gearbox ensures minimal mechanical loss and long service life. This results in smooth movement and consistent performance over time—ideal for sectors demanding absolute reliability, such as industrial robotics or packaging machines.


Code

Flange

Bipolar
holding
torque
[Ncm]
min.

Step
angle
[°]

Rated
current
[A/ph]

Shaft

Rotor
inertia
[g.cm²]

Depth
[mm]

Class
protection

Gearbox

MT17HE14004M4G1NEMA 17 - 42 mm square2601.840Single shaft4034.0IP301:26.831

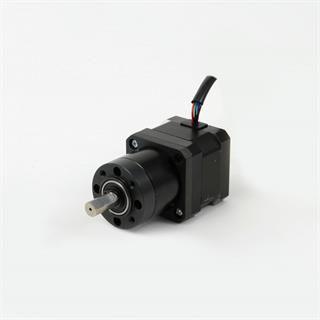

MT17HE14004M4GYNEMA 17 - 42 mm square2300.940Single shaft4034.0IP301:26.831

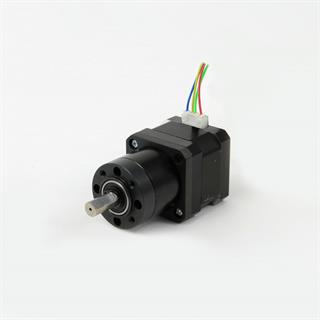

MT17HE14015M4G1NEMA 17 - 42 mm square2501.8150Single shaft4032.0IP301:5.18

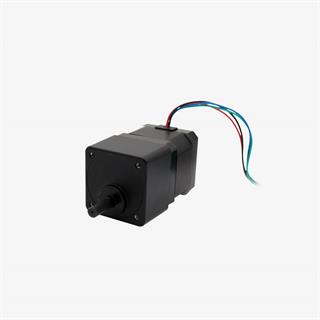

MT17HE17013M4G3NEMA 17 - 42 mm square4001.8130Single shaft5739.7IP301:10

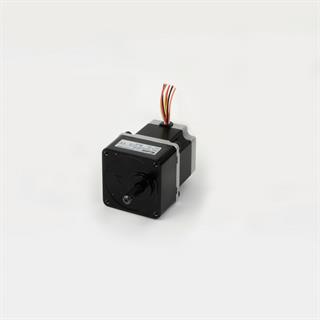

MT23HE22007M8G1NEMA 23 - 56 mm square12001.870Single shaft27554.7IP301:11
MT23FK22010M8G3NEMA 23 - 56 mm square11001.8100Single shaft28052.9IP301:10
MT23HE31042B4G1NEMA 23 - 56 mm square20001.8420Double shaft48077.3IP301:30

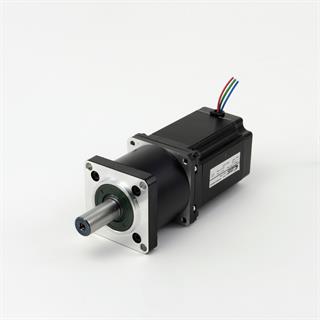

MT23HE31042B4G2NEMA 23 - 56 mm square20001.8420Double shaft48077.3IP301:5

Search

Technologies

High Efficiency stepper motors are designed and manufactured to optimize the motors performance. High efficiency stepper motors have up to 40% more torque than standard stepper motors.
