2‑Phase Hybrid Stepper Motors High Efficiency



Code

Flange

Bipolar
holding
torque
[Ncm]
min.

Step
angle
[°]

Rated
current
[A/ph]

Shaft

Rotor
inertia
[g.cm²]

Depth
[mm]

Class
protection

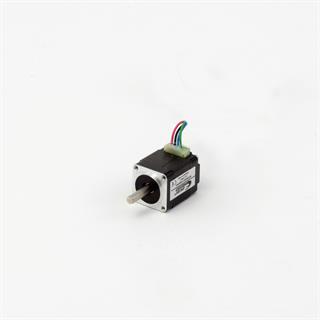

MT08HE11004M40VNEMA 8 - 20 mm square1.51.80.40Single shaft227.8IP40

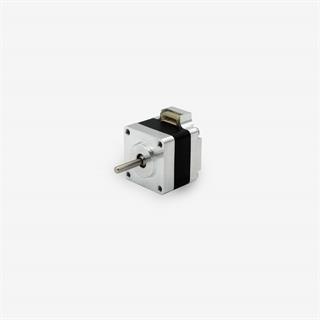

MT10HE10007M40CNEMA 10 - 25 mm square3.31.80.70Single shaft223.5IP20

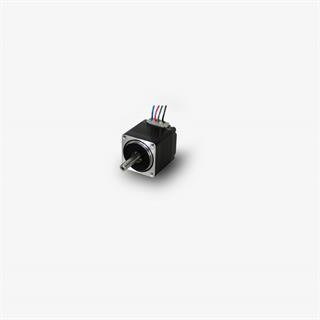

MT11HE12010B401NEMA 11 - 28 mm square7.01.81.00Single shaft930.1IP40

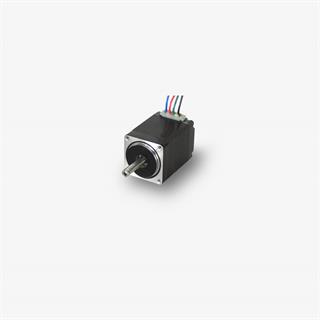

MT11HE20010M400NEMA 11 - 28 mm square14.01.81.00Single shaft2050.4IP40

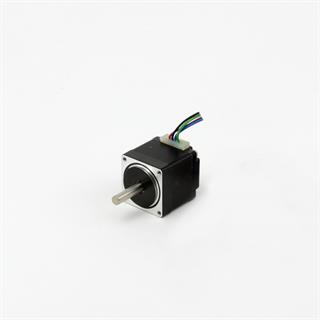

MT12HE12007M4NEMA 12 - 28 mm square6.01.80.67Single shaft930.1IP30

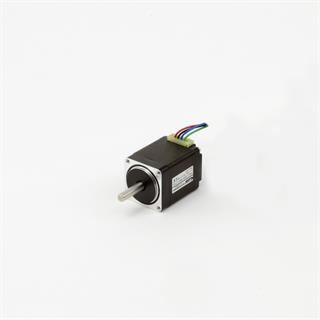

MT12HE18015B401NEMA 12 - 28 mm square13.01.81.50Double shaft1239.2IP30
MT12HE20007M402NEMA 12 - 28 mm square15.01.80.67Single shaft2250.4IP30

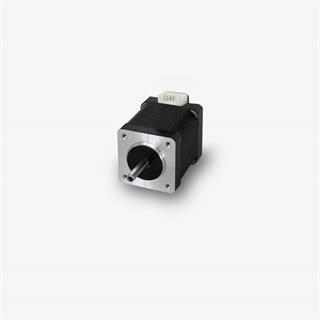

MT14HE15023M401NEMA 14 - 35 mm square16.01.82.30Single shaft2036.5IP40

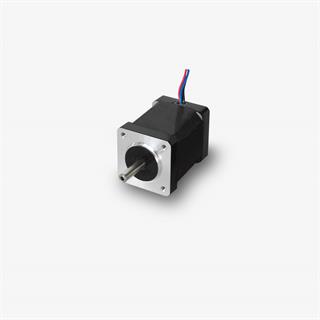

MT14HE21007M401NEMA 14 - 35 mm square27.01.80.70Single shaft2252.9IP40

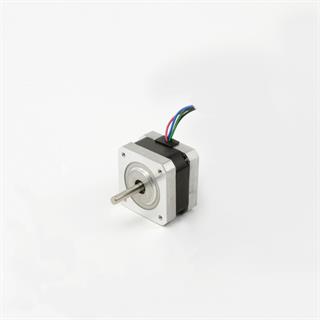

MT17HE11013M4YNEMA 17 - 42 mm square20.00.91.30Single shaft2229.8IP30
MT17HE14004M4YNEMA 17 - 42 mm square23.00.90.40Single shaft4034.0IP30

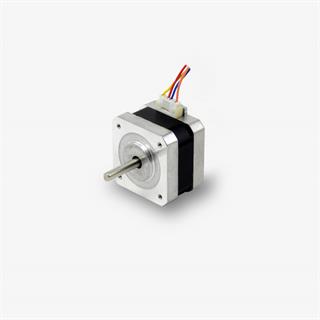

MT17HE12008M402NEMA 17 - 42 mm square15.01.80.80Single shaft2529.2IP30

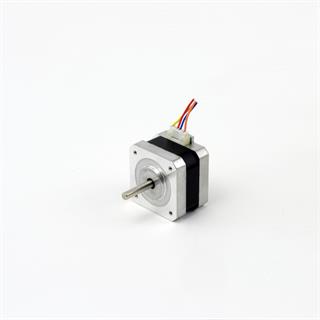

MT17HE14008M401NEMA 17 - 42 mm square14.01.80.80Single shaft2629.7IP30

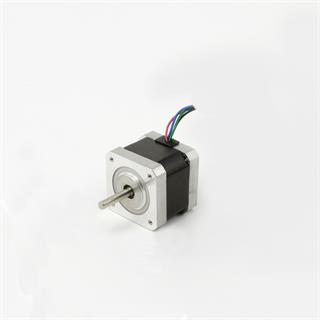

MT17HE16017M4NEMA 17 - 42 mm square41.01.81.68Single shaft5739.7IP20

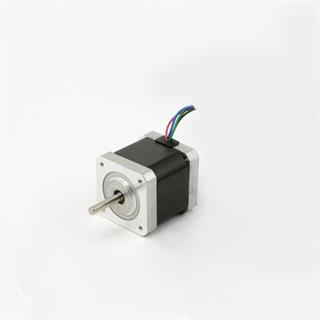

MT17HE18017M4YNEMA 17 - 42 mm square44.00.91.68Single shaft6845.0IP30

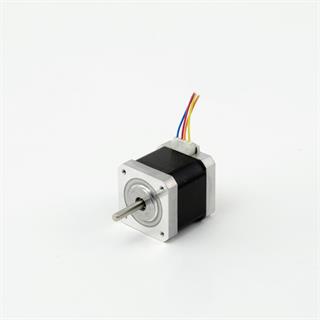

MT17HE18010M4VNEMA 17 - 42 mm square50.01.81.00Single shaft6943.7IP30
MT17HE18010M403NEMA 17 - 42 mm square45.01.81.00Single shaft6943.7IP30
MT17HE18025M402NEMA 17 - 42 mm square47.01.82.50Single shaft6943.7IP30
MT17HE19013M402NEMA 17 - 42 mm square53.01.81.30Single shaft8247.7IP20

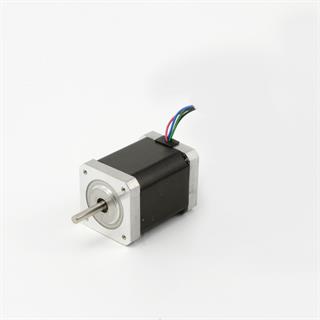

MT17HE24015M4NEMA 17 - 42 mm square79.01.81.50Single shaft22059.7IP30

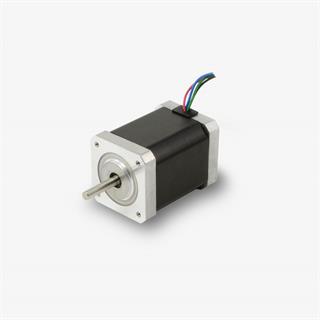

MT17HE24028M4NEMA 17 - 42 mm square86.01.82.80Single shaft11559.7IP40
MT17HE24028B4NEMA 17 - 42 mm square91.01.82.80Double shaft22059.7IP30

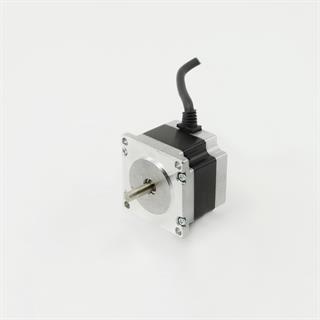

MT23HE17028M4NEMA 23 - 56 mm square78.01.82.80Single shaft17041.9IP30

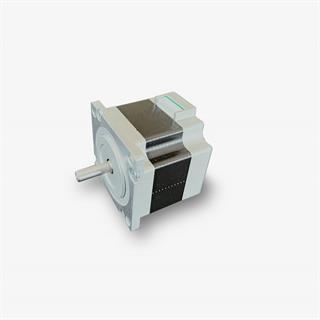

MT23HE20020M41CNEMA 23 - 56 mm square72.01.82.00Single shaft18046.5IP40

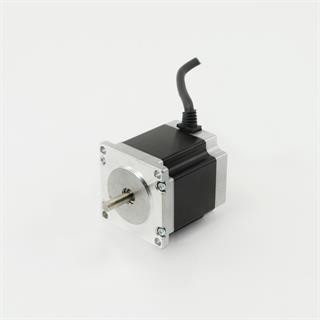

MT23HE22020B602NEMA 23 - 56 mm square100.01.82.00Double shaft with encoder fixing holes provision28053.3IP30

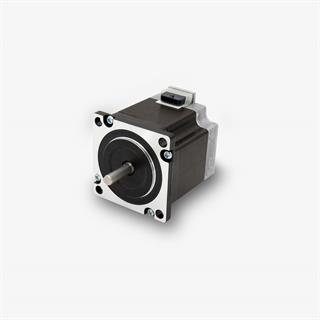

MT23HE22042M403NEMA 23 - 56 mm square115.01.84.20Single shaft28056.5IP40

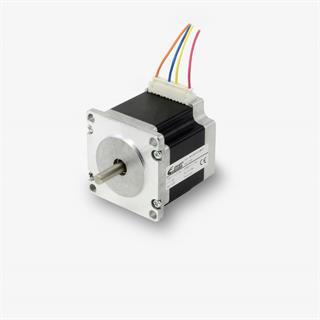

MT23HE22015M402NEMA 23 - 56 mm square100.01.81.50Single shaft28653.3IP40
MT23HE22042B401NEMA 23 - 56 mm square120.01.84.20Double shaft with encoder fixing holes provision28053.3IP30

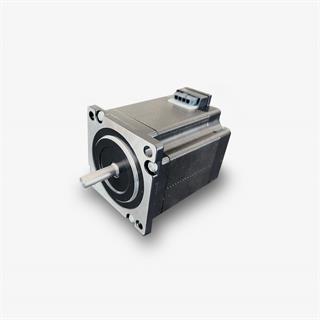

MT23HE26030M40CNEMA 23 - 56 mm square170.01.83.00Single shaft51665.5IP40

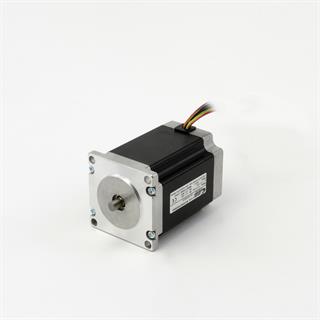

MT23HE31028B801NEMA 23 - 56 mm square183.01.82.80Double shaft with encoder fixing holes provision48076.9IP30

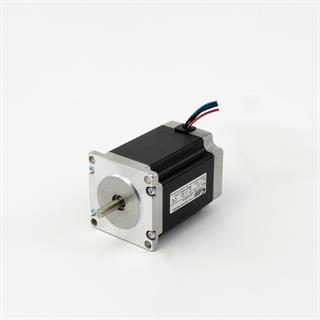

MT23HE31030B801NEMA 23 - 56 mm square220.01.83.00Double shaft with encoder fixing holes provision48077.3IP30

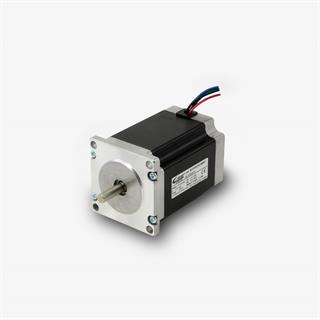

MT23HE31050M401NEMA 23 - 56 mm square220.01.85.00Single shaft60080.5IP40

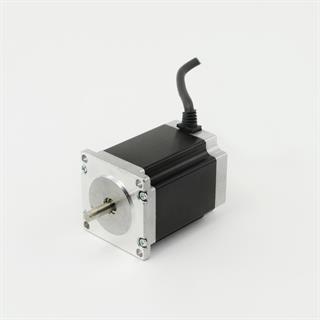

MT23HE31056M4NEMA 23 - 56 mm square187.01.85.60Single shaft48077.3IP30
MT23HE31050B4YNEMA 23 - 56 mm square160.00.95.00Double shaft with encoder fixing holes provision48077.3IP30

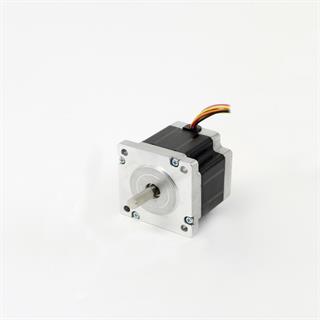

MT24HE22020M801NEMA 24 - 60 mm square160.01.82.00Single shaft45054.5IP30

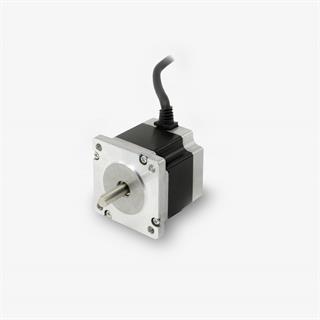

MT24HE22028M402NEMA 24 - 60 mm square160.01.82.80Single shaft45054.5IP40

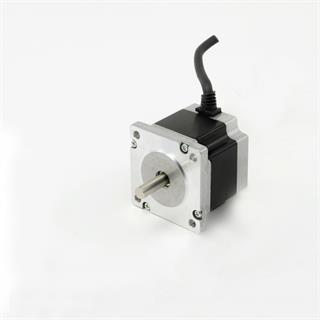

MT24HE22030B401NEMA 24 - 60 mm square130.01.83.00Double shaft with encoder fixing holes provision45054.5IP30

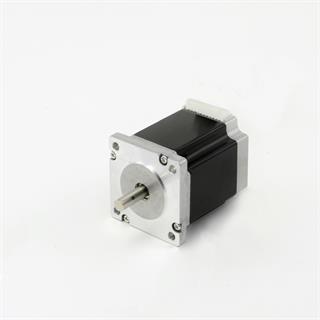

MT24HE26028M403NEMA 24 - 60 mm square207.01.82.80Single shaft56065.5IP30

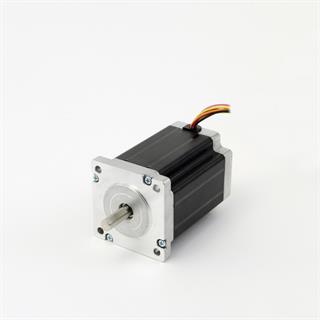

MT24HE35030M801NEMA 24 - 60 mm square300.01.83.00Single shaft81085.5IP30

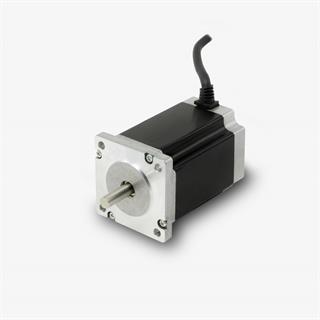

MT24HE35040M401NEMA 24 - 60 mm square270.01.84.00Single shaft92285.5IP40

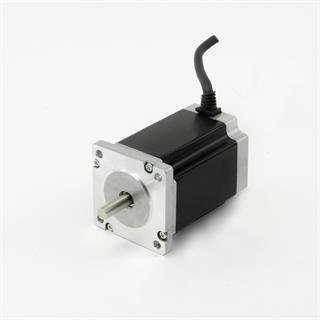

MT24HE35042M401NEMA 24 - 60 mm square300.01.84.20Single shaft81085.5IP30
MT24HE35042B401NEMA 24 - 60 mm square300.01.84.20Double shaft with encoder fixing holes provision81085.5IP30

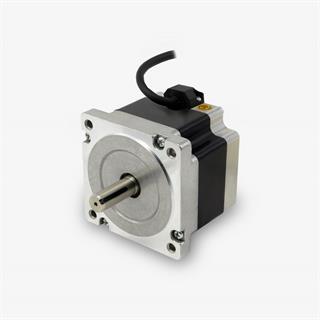

MT34HE26060M4K1NEMA 34 - 86 mm square360.01.86.00Single shaft110067.5IP30

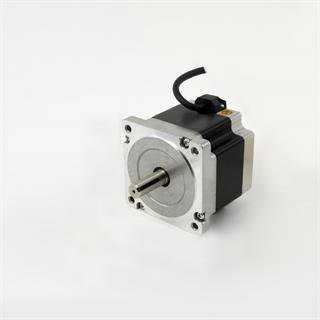

MT34HE26060M4K2NEMA 34 - 86 mm square360.01.86.00Single shaft95067.5IP30

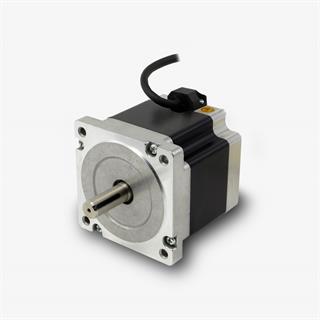

MT34HE31060M4K2NEMA 34 - 86 mm square536.01.86.00Single shaft187879.3IP40

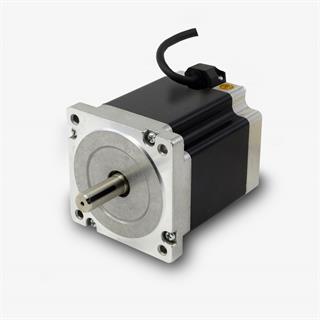

MT34HE38040M4VKNEMA 34 - 86 mm square700.01.84.00Single shaft270096.5IP43

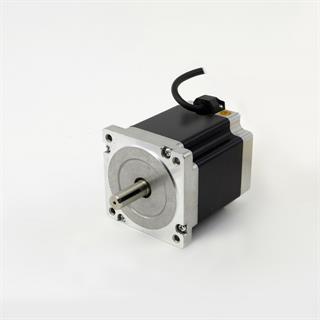

MT34HE38060M4K1NEMA 34 - 86 mm square700.01.86.00Single shaft185096.5IP30

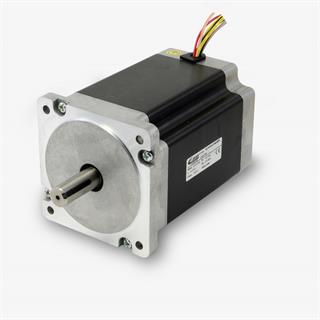

MT34HE47060M8KNEMA 34 - 86 mm square1180.01.86.00Single shaft3800118.0IP40
MT34HE47060B8KNEMA 34 - 86 mm square1180.01.86.00Double shaft with encoder fixing holes provision3785118.5IP30
MT34HE47090M401NEMA 34 - 86 mm square1180.01.89.00Single shaft2500118.5IP30

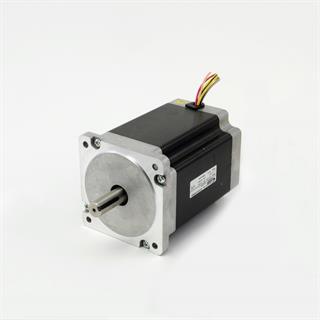

MT34HE47090M8KNEMA 34 - 86 mm square1180.01.89.00Single shaft2500118.5IP30

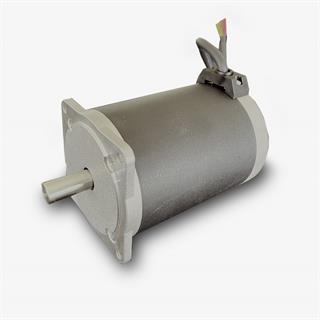

MT34HE47100M4R1NEMA 34 - 86 mm round1000.01.810.00Single shaft3700119.3IP40
MT34HE47120M4KNEMA 34 - 86 mm square1180.01.812.00Single shaft2500118.5IP30

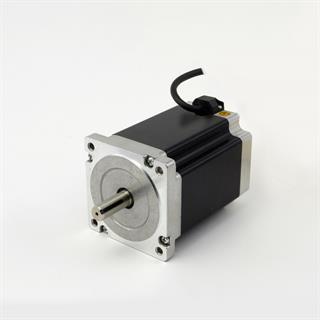

MT34HE50040M4VKNEMA 34 - 86 mm square1000.01.84.00Single shaft4000125.5IP20
MT34HE62060M8KNEMA 34 - 86 mm square1220.01.86.00Single shaft4800158.5IP30

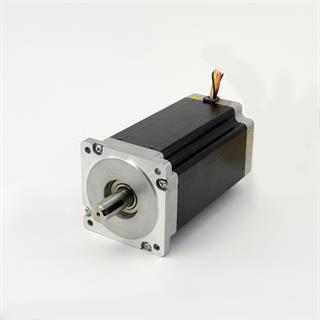

MT34HE62060B8KNEMA 34 - 86 mm square1220.01.86.00Double shaft with encoder fixing holes provision4800158.5IP30

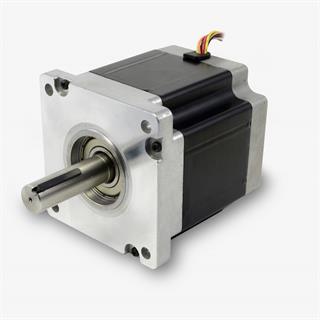

MT42HE39075M8KNEMA 42 - 110 mm square1200.01.87.50Single shaft560099.0IP40

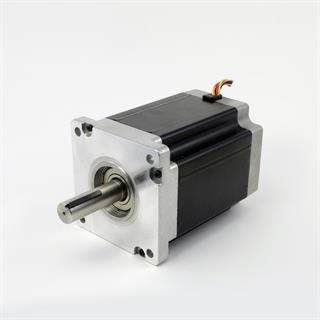

MT42HE59110M8KNEMA 42 - 110 mm square2200.01.811.00Single shaft10900149.0IP30

Efficiency and Energy Savings

High-efficiency 2-phase hybrid stepper motors are engineered to deliver maximum output with minimal power consumption. They provide strong torque across variable speeds, while maintaining positioning precision and stability. Optimized step angle and low inertia enable fast dynamic response—key for industrial processes demanding fast cycles.

Common Applications and Benefits

Thanks to their versatility, these motors are ideal for packaging, light automation, and transport systems. Their precise motion control reduces production errors and waste, improving process quality. With long service life and minimal maintenance needs, they ensure quick return on investment, optimizing both time and cost overhead.

Search

Search
Related products to High Efficiency
High Efficiency With Gearbox and Encoder
Hybrid 2 Phases

High Efficiency With Encoder
Hybrid 2 Phases

High Efficiency With Gearbox
Hybrid 2 Phases

High Efficiency Waterproof
Hybrid 2 Phases

Technologies

High Efficiency stepper motors are designed and manufactured to optimize the motors performance. High efficiency stepper motors have up to 40% more torque than standard stepper motors.
