| Power supply voltage |
24 [Vcc] ÷ 75 [Vcc] |
| Output current |
1.70 [A/ph rms] ÷ 5.53 [A/ph rms] 2.40 [A/ph peak] ÷ 7.80 [A/ph peak] |

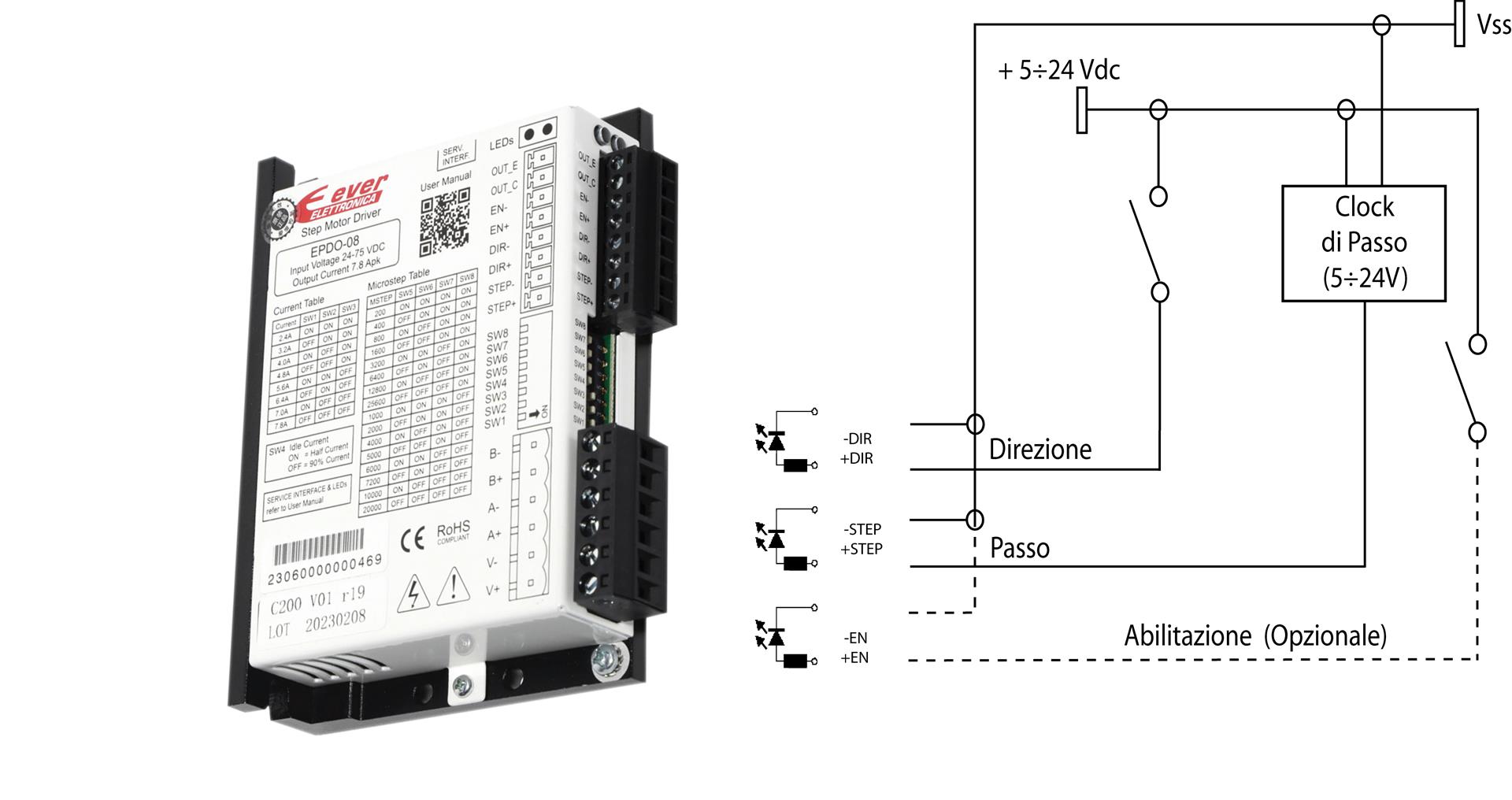

| Control mode |
Clock & Direction |
| Mounting |
Wall mounting |
| Digital inputs |
3 optoisolated 5 - 24Vdc |
| Digital outputs |
1 24 Vdc - 100 mA output for fault. |
| Open or Close loop |
Open loop |
| Step resolution |
Emulated from full step up (200 pps - 1.8°) to 1/128 and from 1/5 up to 1/100 step |
| Safety protections |
Over/Under voltage, Over Current, Over Temperature, Short Circuit Phase/Phase and Phase/Ground |
| Status monitoring |
2 LEDs |
| Operative temperature |
5 [°C]÷ 40 [°C] |
| Storage temperature |
-25 [°C] ÷ 55 [°C] |
| Humidity |
5 [%] ÷ 85 [%] |
| Protection class |
IP20 |
| Dimensions H x L x W |
108.0 [mm] x 26.0 [mm] x 75.5 [mm] |
| Weight |
0.35 [Kg] |
| Software settings and connections |
Service SCI interface for configuration and real-time debugging. |
Certifications
| Certifications |
CE, RoHS, REACH |
Functions
● Setting of the current value by means of dip-switches
● Selection of the step angle by means of dip-switches.

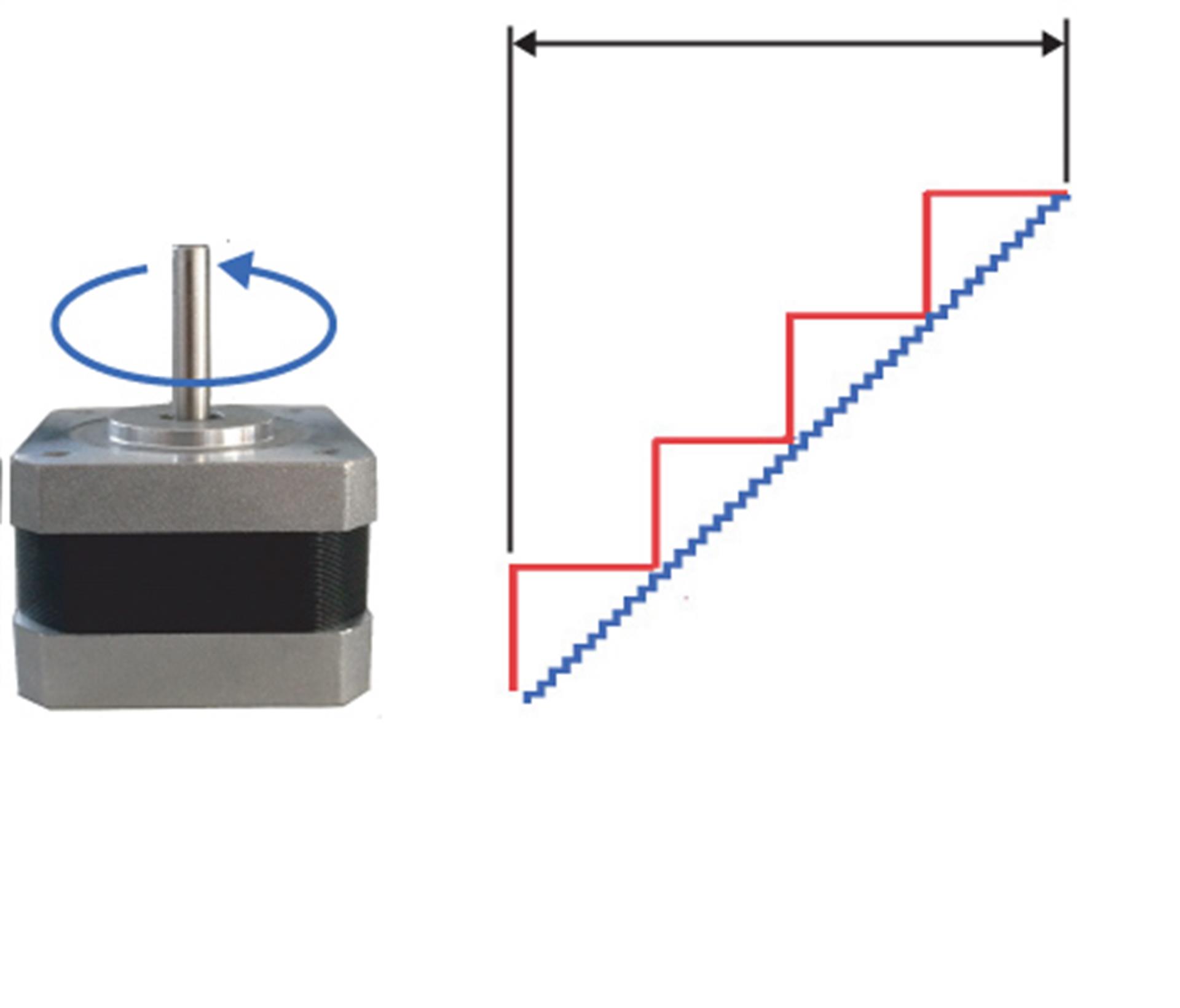

In order to maintain compatibility with traditional drivers, step angles have been emulated through software, the current regulation is always sinusoidal.
● Possibility to select 50% or 90% automatic current reduction (still motor).
Main Features
● Integrated diagnostics
● Motor short-circuit protections, open phases, over and under voltage and temperature
● Vectorial control: the sinusoidal regulation with‘Else’ technology keeps the motor torque constant, allowing smooth and silent movements
● Smooth movements
● Compact size
● Silent rotation
● Reliability
● Low EMC emissions
● Software resonance damping
● High efficiency current regulation
● Reduction of motor temperatures
● Digital inputs from 5 to 24 Vdc
● Fast and easy installation
CONNECTORS KIT
| Code | Description |
| --- | Connectors kit included |
SOFTWARE KIT FOR CONFIGURATION
| Code | Description |
| LW3_SERV00-SL | Kit software for drive configuration with Ever Studio + 200 cm service serial cable and serial/USB converter |
