Titanio Step-Direction Drives for 2-Phase Stepper Motors

Distinctive Features of the Titanio Series

Titanio step-direction drives for 2-phase stepper motors stand out for their robustness and reliability. Built with high-quality components, they handle high currents and offer advanced protection against overheating. This allows full exploitation of motor torque and greater working efficiency.

Optimal Performance in Critical Applications

The Titanio series integrates advanced control algorithms that reduce vibrations and noise, ensuring smooth and stable operation. These features are essential in sectors such as machine tools, medical equipment, or automated handling systems, where precision and efficiency are top priorities


Code

Power supply voltage

Output current

Control mode

Feedback
Interface

Mounting

Digital
inputs

Digital
outputs

[Vcc]

[Vac]

[A/ph rms]

[A/ph peak]

Min

Max

Min

Max

Min

Max

Min

Max

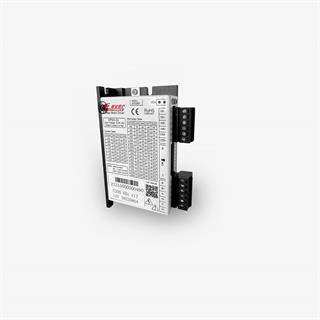

EPDO-021548  0.281.700.402.40Clock & Direction Wall mounting3 optoisolated 5 - 24Vdc

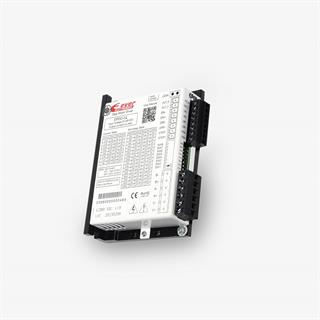

EPDO-042448  0.703.191.004.50Clock & Direction Wall mounting3 optoisolated 5 - 24Vdc1 24 Vdc - 100 mA output for fault.
EPDO-082475  1.705.532.407.80Clock & Direction Wall mounting3 optoisolated 5 - 24Vdc1 24 Vdc - 100 mA output for fault.

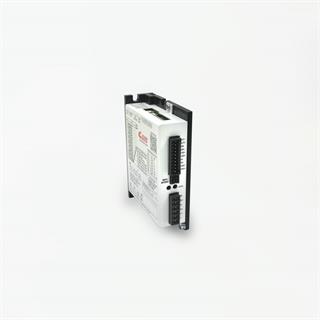

LW3D2030N2A1-001236  0.103.000.144.20Clock & Direction Wall mounting4 optoisolated 5 - 24Vdc.1 Digital OUT 24 Vdc - 100 mA for status monitoring

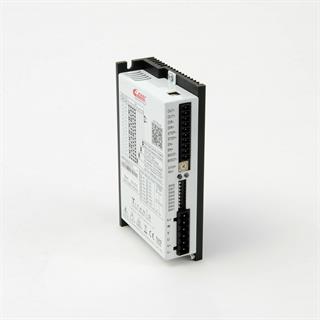

LW3D3032N0A1-002480  0.23.20.34.5Clock & Direction Wall mounting4 optoisolated 2 - 24Vdc 2 MHzNPN or PNP or Line Driver.1 Digital OUT 24 Vdc - 100 mA for status monitoring

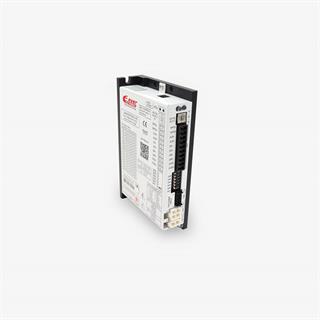

LW4D3070N2I1-002475  0.07.10.010.0Clock & DirectionIncremental encoder input 5 Vdc differential RS422 non-isolatedWall mounting3 optoisolated 5 - 24Vdc NPN or PNP or Line Driver2 Digital OUT 24 Vdc - 100 mA
LW3D3070N0A1-002480  1.77.12.410.0Clock & Direction Wall mounting4 optoisolated 2 - 24Vdc 2 MHzNPN or PNP or Line Driver.1 Digital OUT 24 Vdc - 100 mA for status monitoring

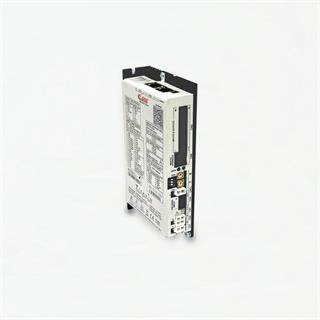

SW4A3070N241-01-S0201  18560.07.10.010,0Clock & DirectionEncoder interface: incremental encoder not isolated input 5V Differential (RS422)or 5V Single-Ended (TTL/CMOS) encoder output not isolated 5V Differential (RS422)Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA

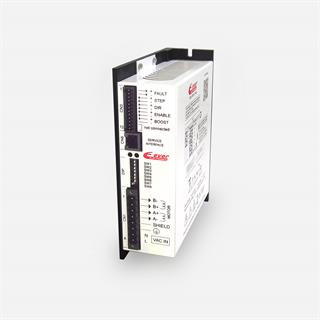

LW3A9030N2A1-00  1002400.03.00.04.2Clock & Direction Wall mounting4 optoisolated 5 - 24Vdc NPN or PNP or Line Driver.1 Digital OUT 24 Vdc - 400 mA NPN or PNP for status monitoring
