| Flange |
60 mm square |
| Phases |
3 |
| Poles pairs |
4 |
| Thermic sensor |
Included |
| Rated Power |
400 [W] |
| Rated voltage |
230 [Vac] |
| Rated current |
2.00 [Arms / ph] |
| Stall current |
2.12 [A] |
| Peak current |
8.50 [Arms / ph] |
| Rated speed |
3000 [rpm] |
| Max speed |
4000 [rpm] |
| Rated Torque |
1.27 [Nm] |
| Stall torque |
1.35 [Nm] |
| Peak torque |
4.05 [Nm] |
| Torque constant |
0.635 ±5% [Nm/A] |
| Voltage constant (B.E.M.F) |
40.60 ±15% [Vrms/Krpm] |
| Rotor inertia |
0.228 [Kg.m²x10^-4] |

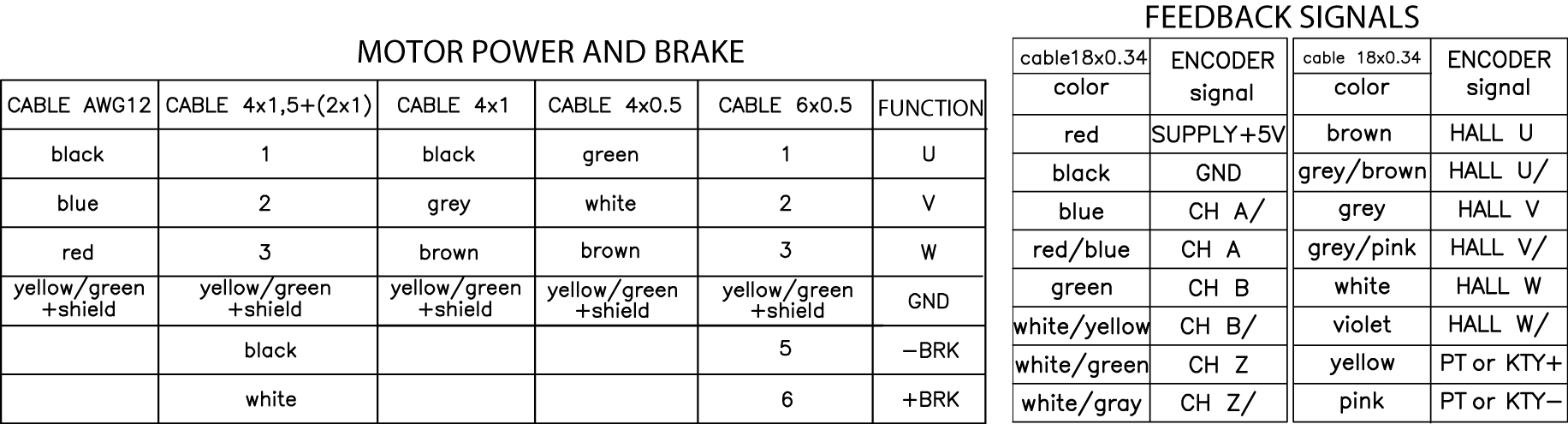

| Wires outputs |
Outing wires |
| Shaft |
Ø14h6 - 30 mm - with key 5x5x20 |
| Winding resistance |
7.15 [ohm ±5%] |
| Winding inductance |
21.00 [mH ±5%] |
| Insulation class |
Class F, 155°C |
| Temperature rise |
105 [K] |
| Environmental specifications |
Installation far from any active gas, combustible gas, oil drop, ash |
| Protection class |
IP65 |
| Ambient temperature |
0 ÷ +40 [°C] |
| Max. shaft radial load |
250 [N] |
| Max. shaft axial load |
80 [N] |
| Cooling method |
Totally enclosed, self cooled |

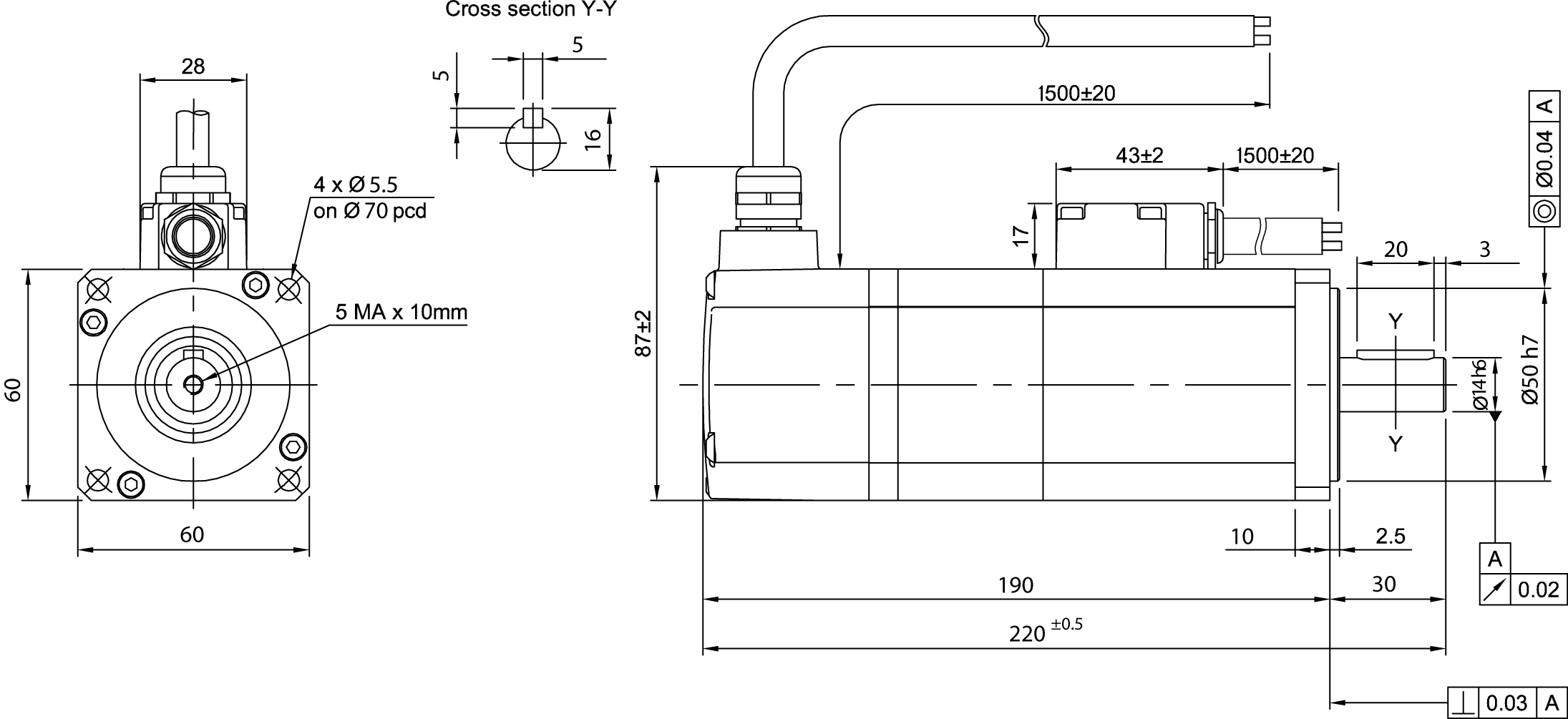

| Motor length |
190.0 [mm] |
| Dimensions H x L x W |
87.0 [mm] x 60.0 [mm] x 220.0 [mm] |
| Weight |
2.0 approx [Kg] |
