| Flange |
80 mm square flange |
| Phases |
3 |
| Poles pairs |
3 |
| Thermic sensor |
Included |
| Rated Power |
750 [W] |
| Rated voltage |
230 [Vac] |
| Rated current |
3.75 [Arms / ph] |
| Stall current |
2.90 [A] |
| Peak current |
8.70 [Arms / ph] |
| Rated speed |
3000 [rpm] |
| Max speed |
4000 [rpm] |
| Rated Torque |
2.39 [Nm] |
| Stall torque |
2.50 [Nm] |
| Peak torque |
7.50 [Nm] |
| Torque constant |
0.85 ±5% [Nm/A] |
| Voltage constant (B.E.M.F) |
51.40 ±15% [Vrms/Krpm] |
| Rotor inertia |
0.614 [Kg.m²x10^-4] |

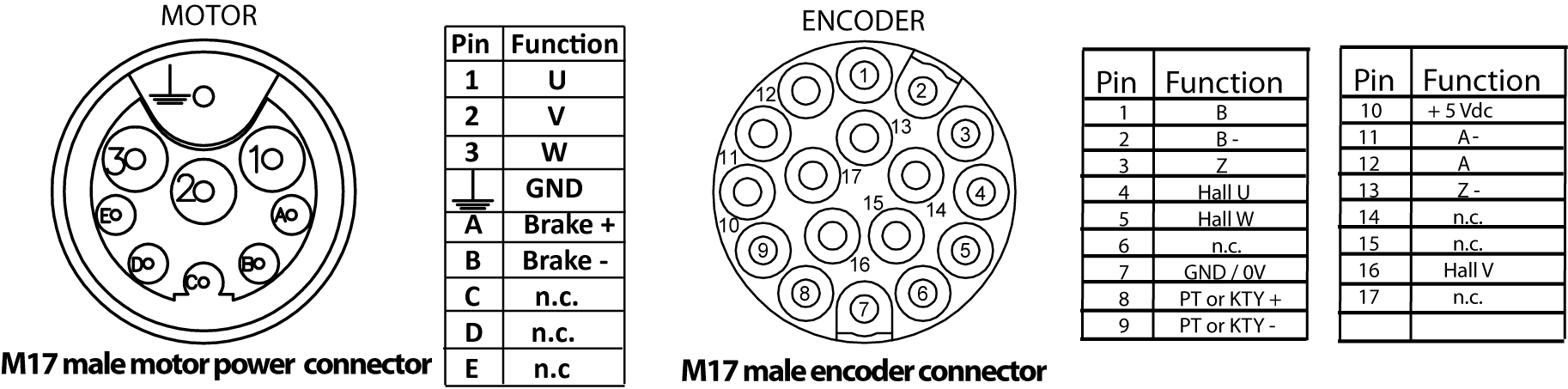

| Wires outputs |
M17 connectors |
| Shaft |
Ø19h6 - 40 mm - with key 6x6x30 |
| Winding resistance |
3.95 [ohm ±5%] |
| Winding inductance |
29.50 [mH ±5%] |
| Insulation class |
Class F, 155°C |
| Temperature rise |
105 [K] |
| Environmental specifications |
Installation far from any active gas, combustible gas, oil drop, ash |
| Protection class |
IP65 |
| Ambient temperature |
0 ÷ +40 [°C] |
| Max. shaft radial load |
420 [N] |
| Max. shaft axial load |
150 [N] |
| Cooling method |
Totally enclosed, self cooled |

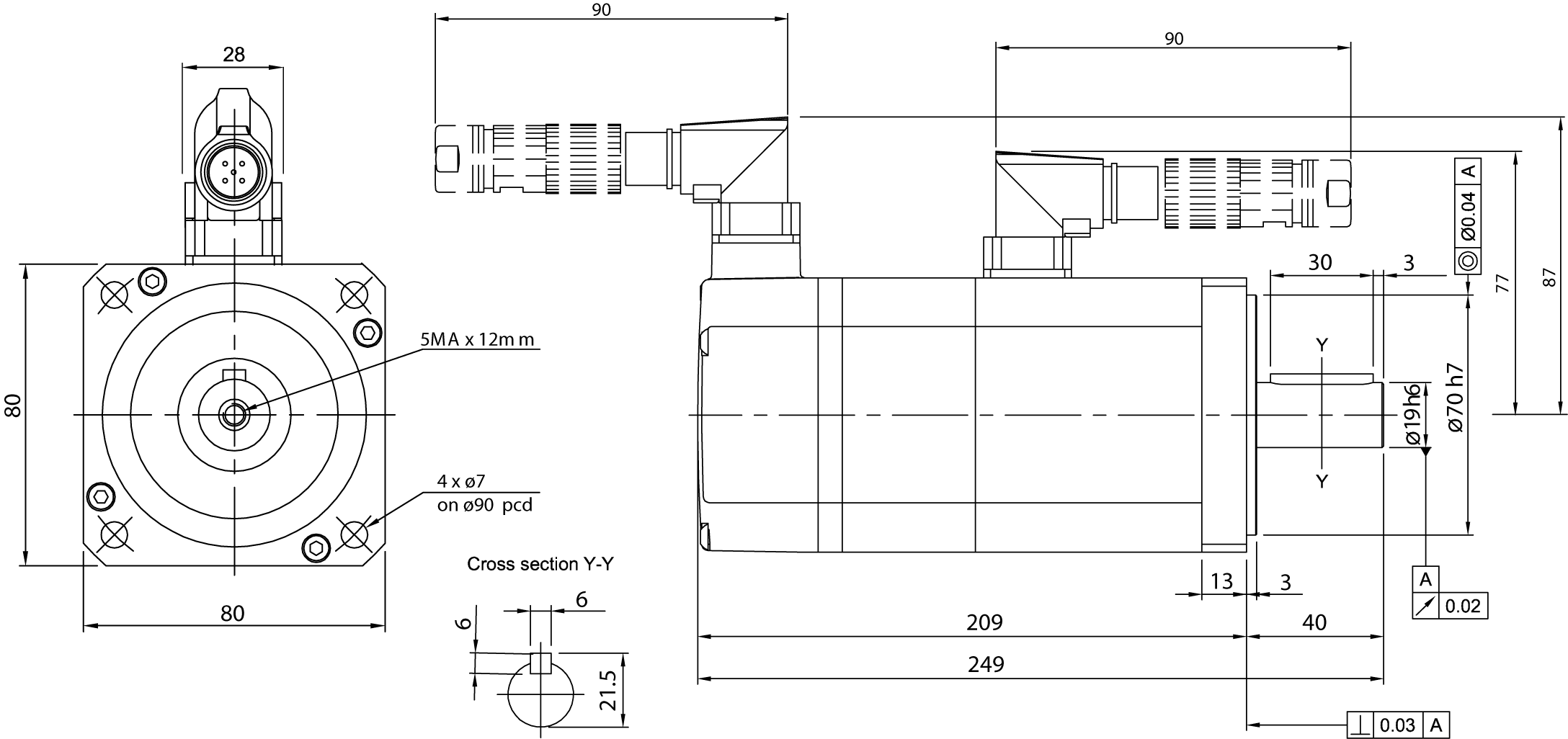

| Motor length |
209.0 [mm] |
| Dimensions H x L x W |
127.0 [mm] x 80.0 [mm] x 249.0 [mm] |
| Weight |
3.60 approx [Kg] |
