In the world of industrial motion control, the stepper motor driver is the key component that transforms a digital signal into precise, controlled mechanical motion. Used in robotics, automated machinery, printing systems, and measurement instruments, this device directly determines the quality, smoothness, and reliability of every movement.
Understanding how a driver works, the different types available, and how to select the most suitable one is essential for engineers designing high-performance automation systems.
INDEX
1. The role of the driver in stepper motor control
2. What a stepper motor driver is and how it works
3. System architecture and control signals
4. Step-direction drivers: logic, operation, and applications
5. Programmable drivers: flexibility and advanced functions
6. Fieldbus drivers: integration in industrial networks
7. Microstepping and phase current management
8. Drive circuitry and main electronic components
9. Key parameters when selecting a driver
10. Compatibility with Ever Motion Solutions stepper motors
11. Practical applications and use cases
12. The importance of precision control in modern motion systems
1. The role of the driver in stepper motor control
The driver is the electronic brain that commands the stepper motor by managing the phase current to control direction, torque, speed, and position.
The driver’s quality has a direct impact on motion smoothness and system stability. In modern industrial systems, it allows the motor behavior to be adapted to the application’s requirements, adjusting parameters such as acceleration, torque, pulse frequency, and microstepping mode.
Without a suitable driver, even the best motor cannot deliver precision performance—especially in continuous-cycle systems or automated processes that require micrometric repeatability.
2. What a Stepper Motor Driver Is and How It Works
A stepper motor driver is a power electronic circuit that controls the motor windings according to commands from a controller or PLC. Its function is to convert digital signals into phase currents, generating alternating magnetic fields that move the rotor incrementally. Each input pulse corresponds to one step, and positioning accuracy depends on both the number of steps per revolution and the quality of current regulation. In advanced systems, the driver manages acceleration/deceleration profiles, current limitation, and dynamic torque compensation, ensuring smooth motion even at low speeds.
3. System architecture and control signals

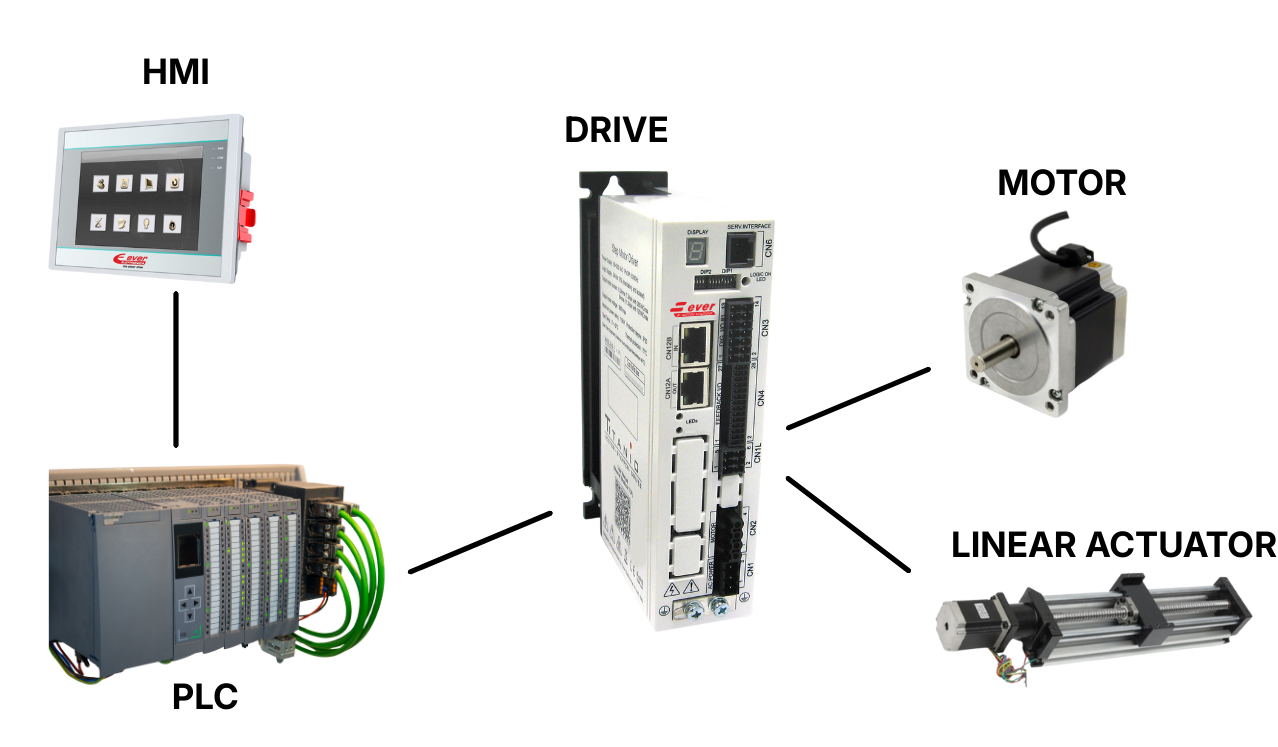

A typical system includes three main elements:
- Controller or PLC, which generates the control signals;
- Driver, which processes and converts them into current for the motor phases;
- Stepper motor, which performs the mechanical motion.
The main control signals are
STEP (number of pulses defining the distance traveled) and
DIR (direction of rotation). Some drivers also manage
ENABLE,
FAULT and
RESET signals for integration into safety systems. Interfacing can occur through
5V or 24V digital signals, or via
serial communication protocols and
fieldbus systems, depending on system complexity.
4. Step-Direction Drivers: Logic, Operation, and Applications
The step-direction driver is the most common and simplest implementation. Each pulse sent to the STEP input advances the motor by one step, while the DIR input determines rotation direction. This scheme is ideal for motion control managed by external controllers such as PLCs or CNC control boards. Pulse frequency defines speed, and the total number of pulses determines the rotation angle. This solutions is cost-effective, reliable, and widely used in 3D printers, pick & place machines, dosing systems, and small linear acutators. Ever Motion Solutions’ step-direction drivers feature high resolution and dynamic current control to minimize vibration and improve motor stability.
5. Programmable Drivers: Flexibility and Advanced Functions
Programmable drivers integrate a microcontroller, allowing the motion profile to be configured directly via software-without requiring an external controller. Through dedicated interfaces (USB, RS485, CANopen), users can set parameters such as maximum speed, acceleration ramp, operating mode, and alarm management. This architecture enables complex motion sequences and automatic cycles, making it ideal for stand-alone systems or compact machines. The ability to store multiple internal programs reduces latency and increases reliability in repetitive automation tasks.

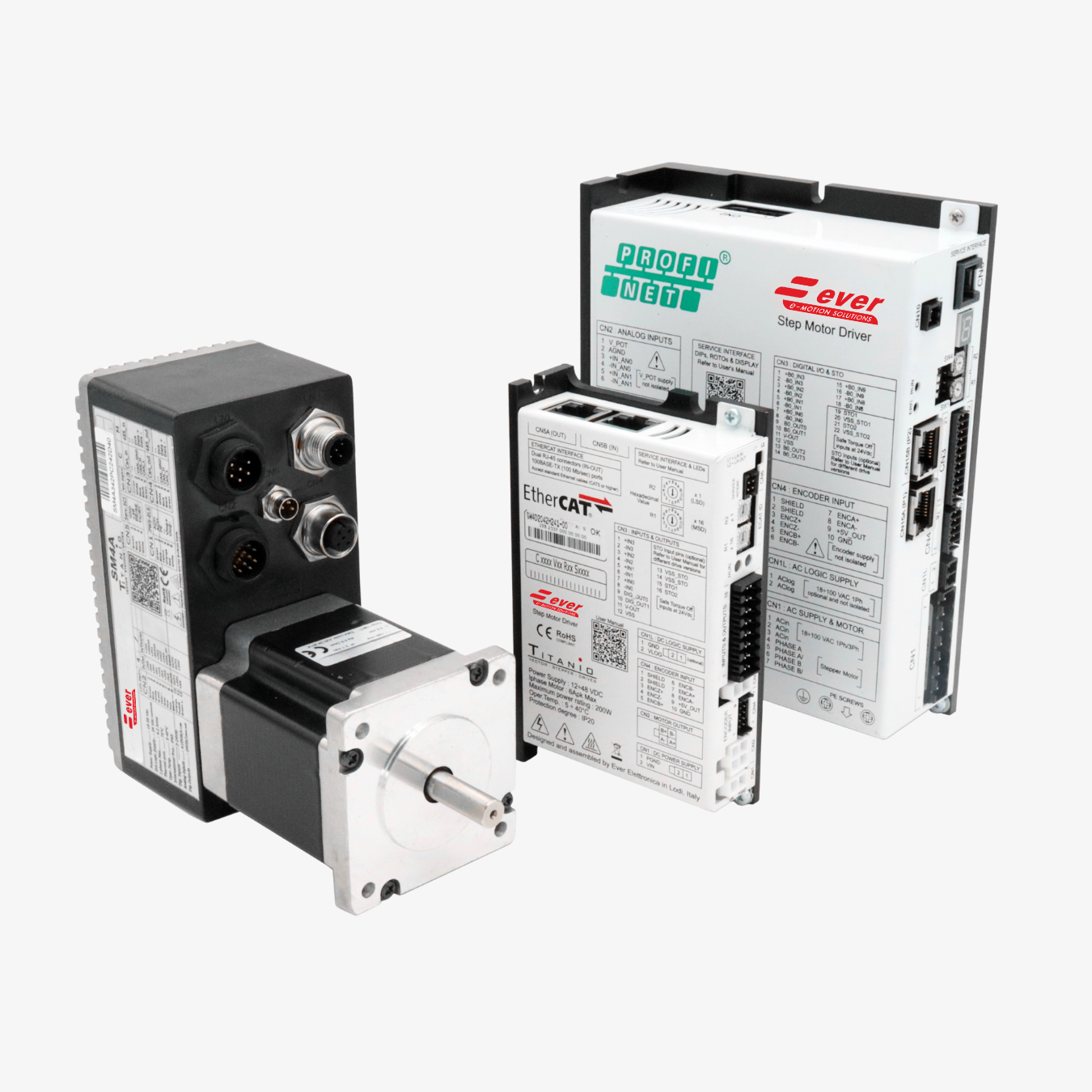

6. Fieldbus Drivers: Integration in Industrial Networks
Fieldbus-based drivers represent the most advanced level of motion control. Through real-time communication with PLCs and master controllers, they ensure perfect synchronization between multiple axes and continuous diagnostic feedback. The most common industrial protocols include CANopen, Modbus RTU, EtherCAT, PROFINET, EtherNet/IP, Modbus TCP/IP, and Powerlink.
These drivers allow current, temperature, and motor status monitoring, integrating seamlessly into Industry 4.0 systems.
Ever Motion Solutions fieldbus drivers are engineered for high noise immunity and precise torque management, ideal for robotics, packaging, and high-precision machine tools.
7. Microstepping and Phase Current Management
Microstepping is a control technique that divides each motor step into smaller fractions improving motion smoothness and resolution. By regulating the current in each phase following a sinusoidal waveform, microstepping eliminates the vibration typical of full-step or half-step operation, improving quietness, precision, and maintaining the motor within optimal operating temperatures, thus preventing overheating.
Modern drivers allow up to 256 microsteps per full step, offering extremely fine control. However, increasing resolution reduces available torque, requiring a balance between precision and torque depending on the application. Ever Motion Solutions drivers feature automatic current regulation, optimizing performance under varying load conditions.
8. Drive Circuitry and Main Electronic Components
A stepper motor driver typically consists of:
- Microcontroller or logic ASIC;
- Power stage with MOFSET o IGBTs for current switching;
- Protection circuits for overcurrent, overtemperature, and shor-circuit conditions;
- Current sensors for microstepping regulation;
- Communication interfaces for PLC or PC connection.
Compact drivers like
A4988 or
TMC2209 are widely used in entry-level systems, while
Ever Motion Solutions' Titanio and
Slimline offer industrial-grade performance with
vector control and
integrated fieldbus support.
9. Key Parameters When Selecting a Driver
When choosing a stepper motor driver, the following parameters must be carefully evaluated:
- Rated and peak current;
- Supply voltage and motor compatibility ;
- Available microstep resolutions;
- Control type (step-direction, programmabile o bus);
- Thermal dissipation and control cabinet dimensions;
- Operating environment and required IP protection;
- Integrated feedback and diagnostic functions;
An
oversized driver can lead to inefficiency and excessive heat generation, while an
udersized one compromises torque and reliabilty.
Ever Motion Solutions assists designers in selecting the optimal driver for each motor and application ensuring the best balance between
power, precision, and cost.
10. Compatibility with Ever Motion Solutions Stepper Motors
Ever Motion Solutions drivers are designed to operate in synergy with 2- and 3-phase hybrid stepper motors, available in standard versions or with encoders, brakes, and gearboxes. Their wide compatibility with communication protocols and advanced microstepping control ensures smooth operation even in demanding applications. Combined with programmable or fieldbus drivers, these motors achieve maximum efficiency and positioning precision, ideal for CNC machines, pick & place systems, medical automation, and packaging equipment.
11. Practical Applications and Use Cases
Stepper motor drivers are widely used in industries requiring accurate and repeatable motion control, including:
- Light robotics and multi-axis positioning systems;
- Industrial printers and screen-printing machines;
- Vending and packaging machines;
- Medical automation and laboratory instruments;
- Laser cutting systems and wood or metal automation;
The
modular architecture of Ever Motion Solutions drivers allows easy adaptation to diverse project requirements, ensuring
consistent performance even in
complex industrial environments.
12. The Importance of Precision Control in Modern Motion Systems
The driver is the critical link between the digital command world and physical motion. In today’s context of smart and connected automation, its ability to provide control, feedback, and safety determines a machine’s overall competitiveness. With nearly 50 years of expertise in motion control, Ever Motion Solutions designs drivers that deliver stability, efficiency, and precision, suitable for integration in any type of industrial application.
