| Power supply voltage |
18 [Vac] ÷ 100 [Vac] |
| Output current |
0.0 [A/ph rms] ÷ 8.5 [A/ph rms] 0.0 [A/ph peak] ÷ 12.0 [A/ph peak] |
| Control mode |
CANBus CANopen (DS402) |
| Mounting |
Wall mounting |
| Digital inputs |
4 optoisolated inputs |
| Digital outputs |
2 optoisolated outputs |
| Analog inputs |
2 analogues inputs (±10V) |
| Open or Close loop |
Open loop |
| Step resolution |
Stepless Control Technology (65536 emulated positions per turn) |
| Safety protections |
Over/under-voltage, over current, overheating, short circuit between motor phase to phase and phase to ground |
| Operative temperature |
5 [°C]÷ 40 [°C] |
| Storage temperature |
-25 [°C] ÷ +55 [°C] |
| Humidity |
5 [%] ÷ 85 [%] |
| Protection class |
IP20 |
| Dimensions H x L x W |
154.4 [mm] x 46.0 [mm] x 123.5 [mm] |
| Weight |
0.65 [Kg] |
| Software settings and connections |
SCI service interface for configuration and debug in real time. |
Functions

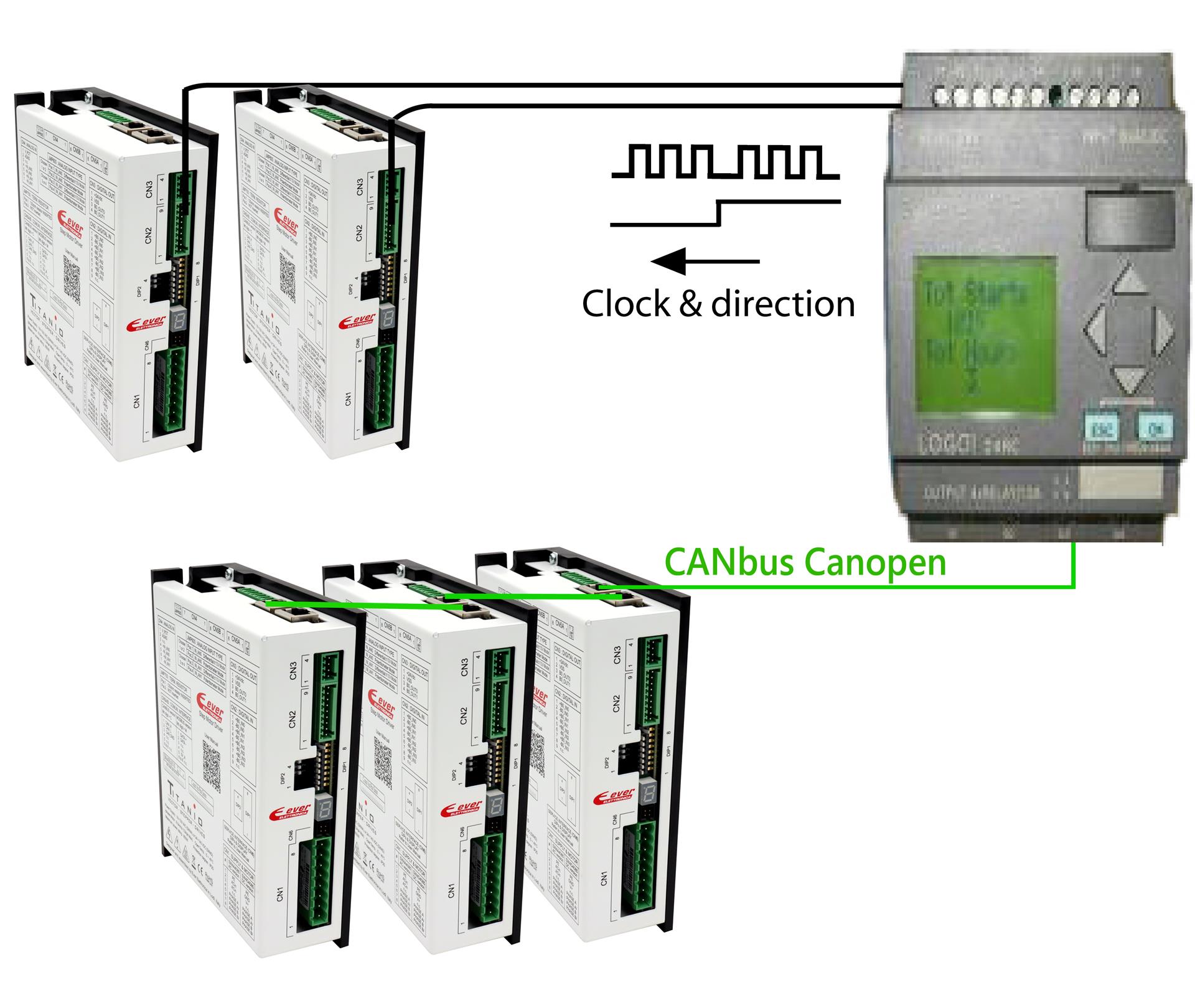

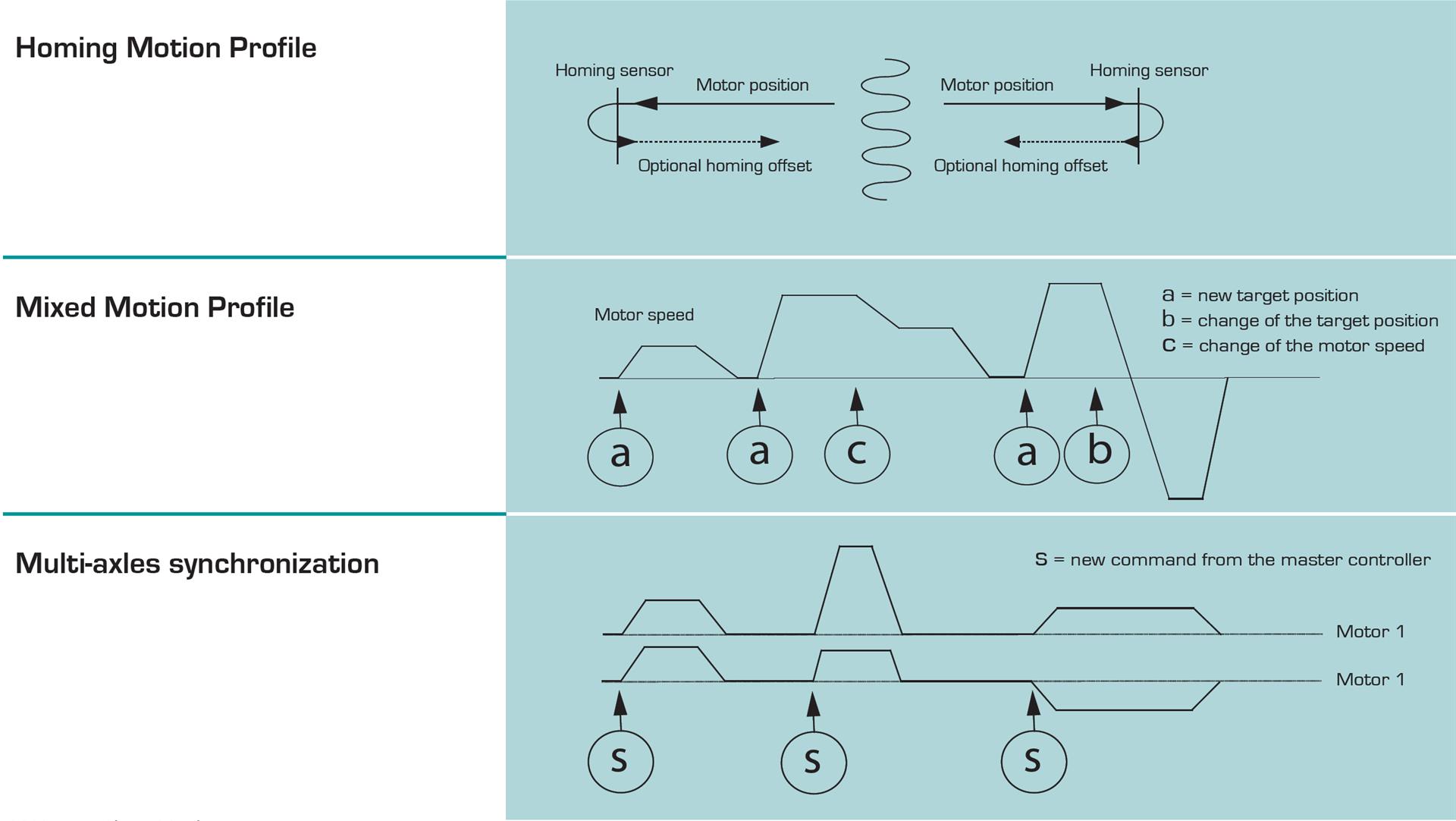

● Wide range of Positioning Control Modes (homing, relative, absolute, target)
● Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles
● Torque mode for operation with torque limitation
● Speed control thanks to digital inputs, analogue inputs or fieldbus
● Electronic CAM with advanced programming of internal profiles inside the drive
● Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)
● Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.● Possibility to synchronize the movements in multiaxis systems, even without fieldbus
● Enabling and on-the-fly changing of the motion control modes
Main Features
● Vectorial control
● Several fieldbus
● Serial Service for real time programming and debugging
CONNECTORS KIT
| Code | Description |
| SW4X4KIT-C0 | Connectors kit for cabling |
SOFTWARE KIT FOR CONFIGURATION
| Code | Description |
| SW4_SERV00-SL | Kit software for drive configuration with Ever Studio + 200 cm service serial cable and serial/USB converter |
