DM5D2200x262D90

Flange	NEMA 24 - 60 mm square
Winding type	Star
Rated voltage	12-48 [Volt]
Drive supply voltage	12-24 (optional and not isolated) [Vcc]
Control mode	Programmable Fieldbus Multiprotocol
Digital inputs	4 not isolated
Digital outputs	2 not isolated
Analog inputs	2 not isolated
Velocity	3800 [rpm]
Poles	10
Phase	3
Rated torque	0.52 [Ncm] min.
Peak torque [Ncm]	1.56
Power	200 [W]
Phase resistance	0.48 [Ohm] ± 10 [%]
Phase inductance	0.7 [mH] ± 20 [%]
Torque constant	0.107 [Nm/A]
B.E.M.F.	6.50 [Vrms/Krpm]
Rated current	5.10 [A/ph]
Peak current	16.20 [A]
Working temperature	-20 [°C] ~ +50 [°C]
Storage temperature	-20 [°C] ~ +85 [°C]
Humidity	5 [%] ~ 85 [%]
Insulation resistance	100 [Mohm min.]
Insulation class	Class F, 155°C
Shaft	Single shaft
Dimensions H x L x W	83.7 [mm] x 65.6 [mm] x 118 [mm]
Weight	1.3 [Kg.]
Protection class	IP65

Feedback

Feedback	Incremental magnetic encoder
Resolution	2500 [ppr]
Power supply	5 [Vdc]

Certifications

CE, RoHs

CONNECTORS KIT

Code	Description
DM5D2KIT-C1M	Connectors kit for DM5D2200C262D90, DM5D2200M262D90
DM5D2KIT-H1M	Connectors kit for DM5D2200H262D90, DM5D2200E262D90, DM5D2200T262D90, DM5D2200R262D90, DM5D2200I262D90

SOFTWARE KIT FOR PROGRAMMING

Code	Description
DM5D_SERV00-M5	Kit software for programming the drive with e3PLC + 200 cm service serial cable and serial/USB converter

The new DM5 line consists of a brushless DC motor and an integrated fieldbus drives.

Main characteristics:

Multiprotocol fieldbus
Following models available:

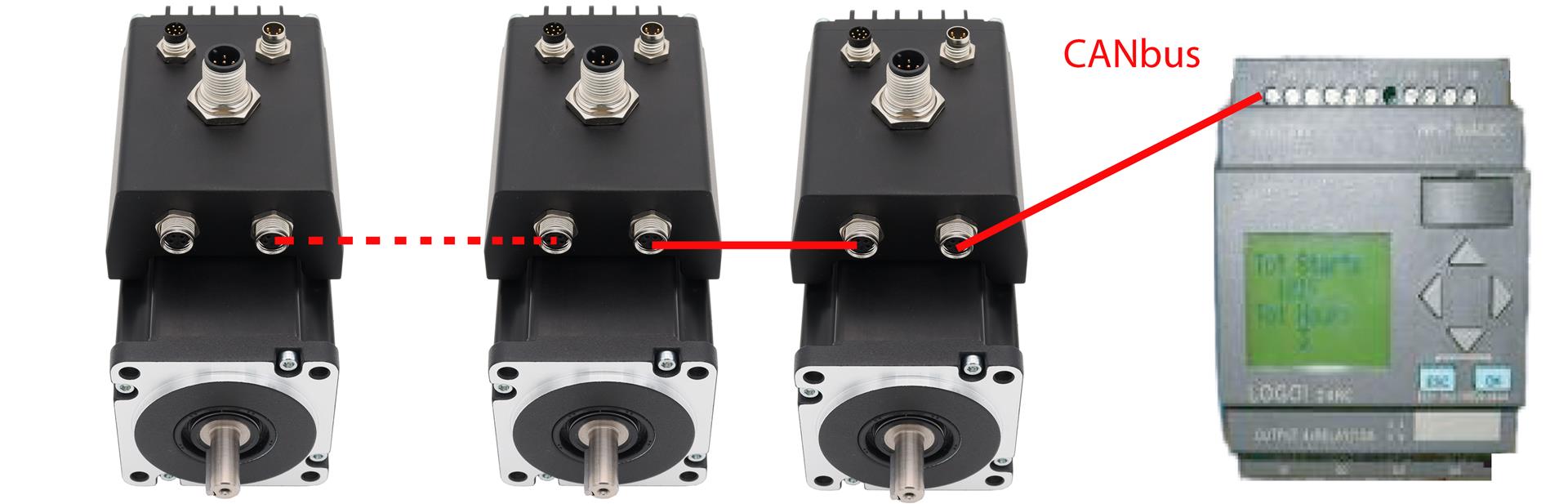

DM5D2200C262D90 - Canbus
DM5D2200M262D90 - Modbus RTU
DM5D2200H262D90 - EtherCAT
DM5D2200E262D90 - Ethernet (Modbus TCP)
DM5D2200T262D90 - Profinet
DM5D2200R262D90 - Powerlink
DM5D2200I262D90 - Ethernet I/P
SCI serial service for configuration, programming and real time debugging
Dedicated opto-isolated inputs for Safe Torque Off (STO)
Easy to program with e3PLC

Motors with Integrated Electronics > Brushless DC with integrated drives > DM5D2200x262D90

Download area for DM5D2200x262D90

Request for information

Request for information about "DM5D2200x262D90" Request (required field) Name and surname (required field) Company name E-mail (required field) Telephone I declare to have read the Privacy Policy

yes, I have read

Send

Share this page

Share "DM5D2200x262D90" by e-mail Sender name(required field) Sender e-mail(required field) Recipient name(required field) Recipient e-mail address(required field) Message(required field) I declare to have read the Privacy policy

Yes, I've read

Invia

Technologies

STO Safe Torque Off function for drives

Find out what Safe Torque Off STO is and how it works on our drives for stepper motors and brushless motors!

How we produce our stepper motors and BLDC motors

Have a virtual trip in our motors factory: you will see step by step how we create and customize our stepper and BLDC motors!

How we produce our drives

Internal production of our drives is our strenght, as it means Made in Italy quality for our customers. Find out what happens "behind the scenes".

Multiprotocol

Ever Motion Solutions has developed multiprotocol drives for both brushless and stepper motors in which by downloading ad hoc firmware you can change the communication protocol as needed for your application.

Functionalities

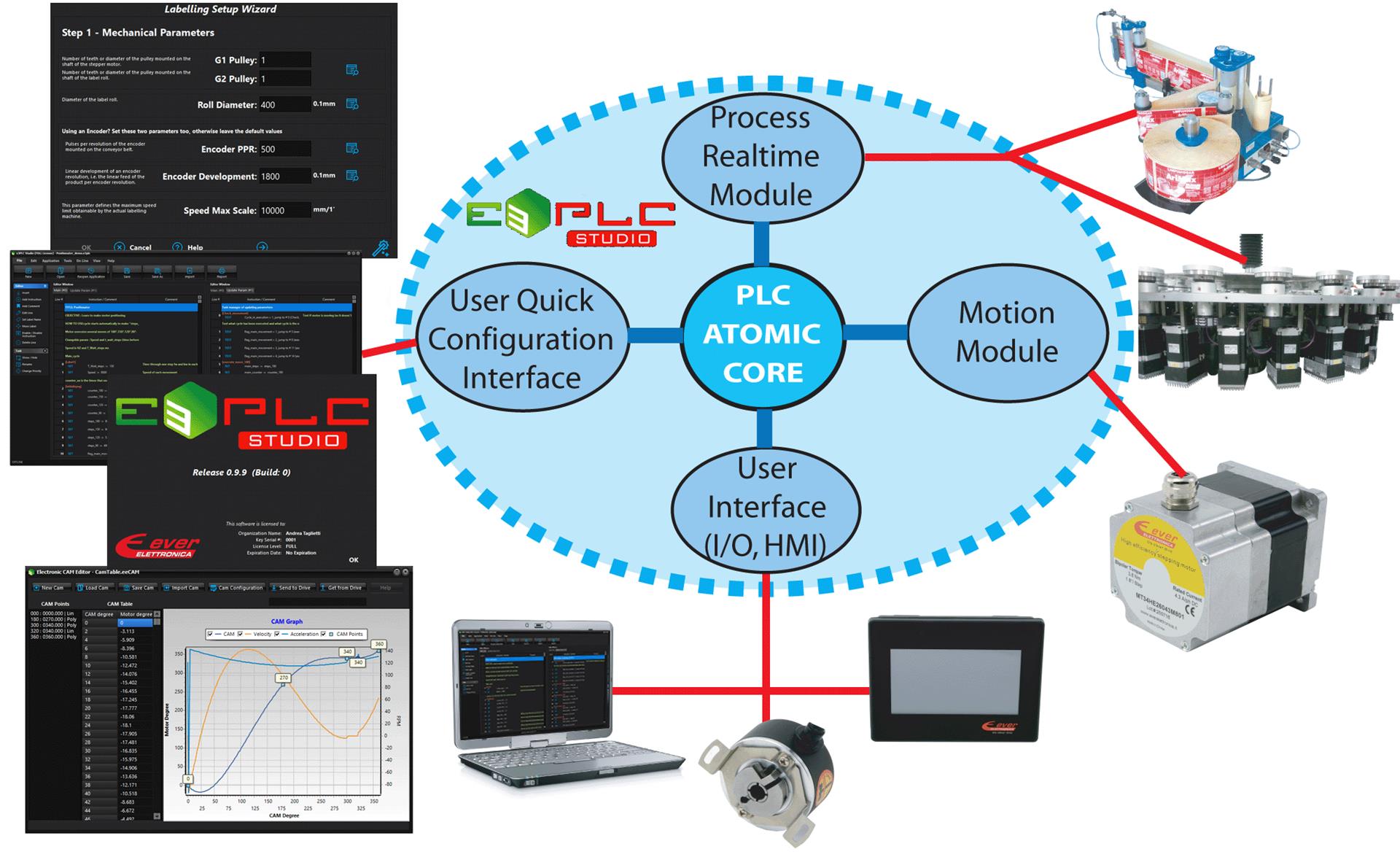

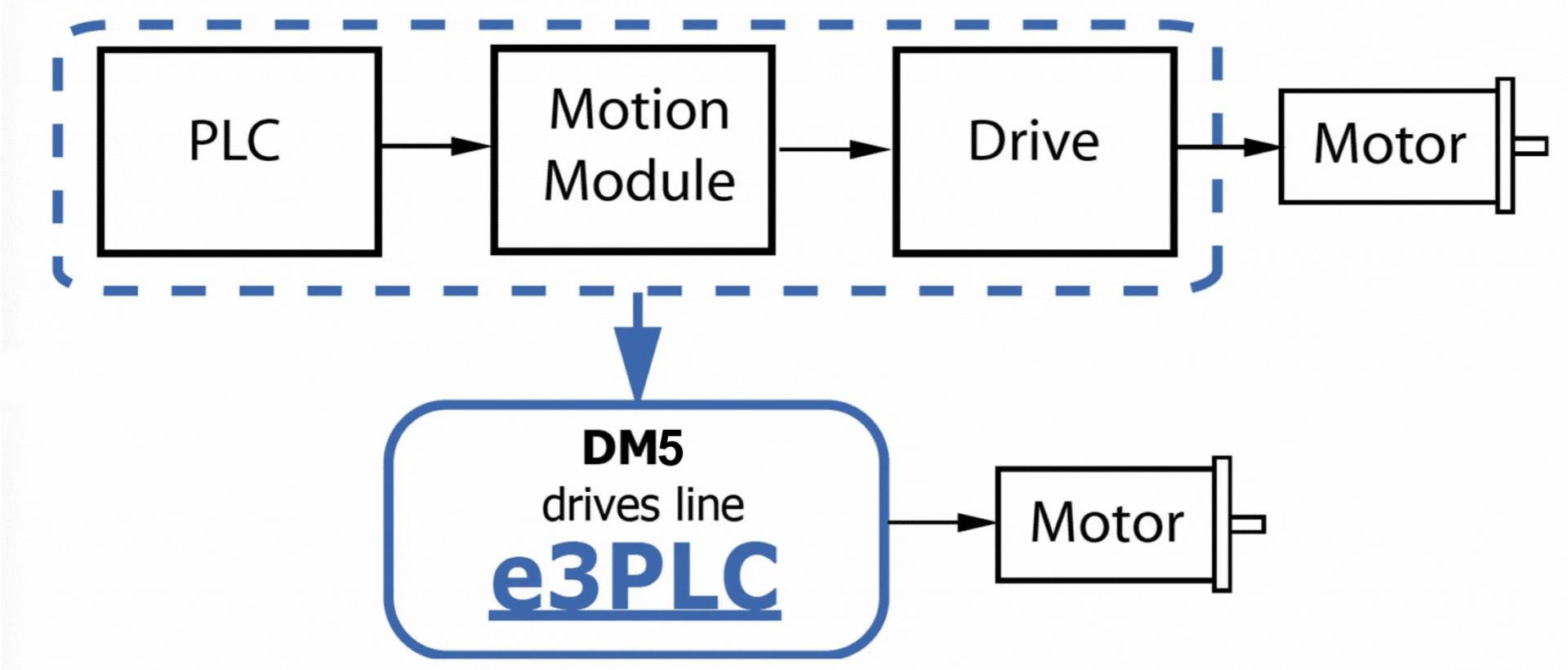

Fieldbus drives with autonomous functioning that, by integrating advanced PLC and motion controller functions in one single device, programmable by the user with the IDE for Windows PC and e3PLC, allows to reduce the traditional machine control solution.
