Special and Custom Drives for 2-Phase Stepper Motors

Tailored Solutions for Every Need

Special and custom drives for 2-phase stepper motors are designed to meet needs that go beyond standard catalog products. Projects with space constraints, unique shapes, or additional functions can be developed ad hoc, ensuring perfect integration with the overall system.

Benefits of a Customized Approach

Choosing a custom solution allows companies to optimize installation time and ensure more efficient operations. The ability to define specific parameters, such as protection levels or special communication protocols, provides a significant competitive advantage, allowing motor control to be adapted to unique and complex processes.


Code

Power supply voltage

Output current

Control mode

Digital
inputs

Digital
outputs

[Vcc]

[Vac]

[A/ph rms]

[A/ph peak]

Min

Max

Min

Max

Min

Max

Min

Max

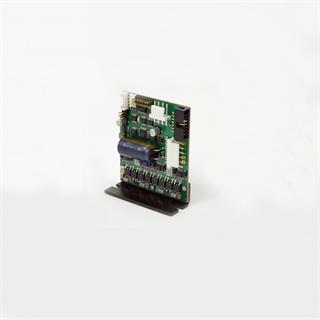

M5A-v11R01-02c04002460  04.306.0Serial RS485 Modbus RTU4 digital inputs 5 Vdc NPN, PNP or line-driver (300 kHz)

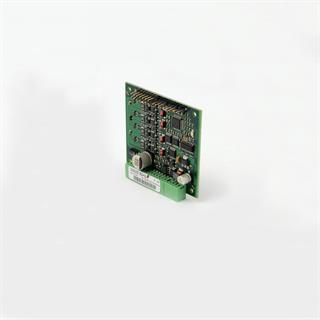

DCM00-v00c04001224  00.500.7Serial RS485 Modbus RTU3 digital inputs 5 Vdc 300 kHz configurable as NPN or PNP.1 digital output 5 Vcc NPN transistor output for Fault.

Search

Technologies

Modbus is a communication protocol among the most widely used standards in the world of industrial devices. All our devices equipped with a serial interface (RS232 or RS485) implement and support the Modbus RTU protocol.
