Titanio Step-Direction Drives for 3-Phase Stepper Motors

Power and Strength of the Titanio Series

The Titanio range dedicated to 3-phase step-direction targets those seeking top-tier performance in industrial settings. These drives handle heavy loads and intensive work cycles, delivering consistent and reliable control at varying operating speeds.

Precise Control and Error Reduction

Advanced control technology minimizes vibrations and ensures smooth starts and stops. This reduces mechanical stress on moving parts and lowers the risk of error in sensitive processes. The result is more efficient production and higher quality in finished products.


Code

Power supply voltage

Output current

Control mode

Mounting

Digital
inputs

Digital
outputs

[Vcc]

[Vac]

[A/ph rms]

[A/ph peak]

Min

Max

Min

Max

Min

Max

Min

Max

LWCD3032N0A1-002480  0.23.20.34.5Clock & DirectionWall mounting4 optocoupled inputs 2 - 24Vdc 2 MHz compatible NPN or PNP or Line Driver.1 digital output 24 Vdc - 100 mA for fault.

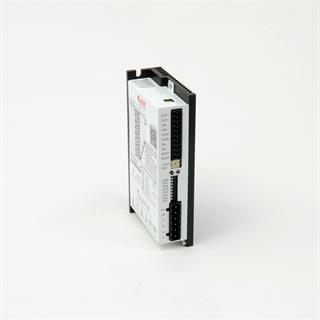

LWCD3070N0A1-002480  1.77.12.410.0Clock & DirectionWall mounting4 optocoupled inputs 2 - 24Vdc 2 MHz compatible NPN or PNP or Line Driver.1 digital output 24 Vdc - 100 mA for fault.

Search

Technologies

Thanks to the ELSE technology integrated in the Ever Motion Solutions drives motors current control is so high that vibrations, resonances and noises don’t exist anymore.
