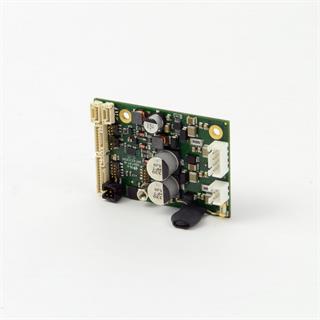

Titanio Open Frame Drives for 3-Phase Stepper Motors

Titanio Materials Quality and Strength

Titanio open frame drives for 3-phase motors combine modular design with the ruggedness typical of the Titanio product line. Components and thermal dissipation tracks are designed to withstand major stress, ensuring operational stability even in environments with extreme temperature changes.

Easy Integration and Advanced Performance

Thanks to well-organized connectors and communication pins, installation is clean and simple, significantly reducing external wiring. This ensures accurate control of 3-phase stepper motors, delivering power consistently aligned with application needs, even in sophisticated, customized projects.


Code

Power supply voltage

Output current

Control mode

Feedback
Interface

Digital
inputs

Digital
outputs

[Vcc]

[Vac]

[A/ph rms]

[A/ph peak]

Min

Max

Min

Max

Min

Max

Min

Max
SBDD2030C2E1-30c03001236  0.03.00.04.2CANBus CANopen (DS301)1 incremental encoder interface4 not isolated digital inputs3 not isolated digital outputs
SBDD2030C2E1-30c03801236  0.03.00.04.2CANBus CANopen (DS402)1 incremental encoder interface4 not isolated digital inputs3 not isolated digital output
SBDD2030C2E1-31c03001236  0.03.00.04.2CANBus CANopen (DS301)1 incremental encoder interface4 not isolated digital inputs3 not isolated digital output
SBDD2030C2E1-31c03801236  0.03.00.04.2CANBus CANopen (DS402)1 incremental encoder interface4 not isolated digital inputs3 not isolated digital output
SBDD2030M2E1-30c04001236  0.03.00.04.2Serial RS485 Modbus RTU1 incremental encoder interface4 not isolated digital inputs3 not isolated digital output
SBDD2030M2E1-31c04001236  0.03.00.04.2Serial RS485 Modbus RTU1 incremental encoder interface4 not isolated digital inputs3 not isolated digital output

Search

Search
Technologies

Modbus is a communication protocol among the most widely used standards in the world of industrial devices. All our devices equipped with a serial interface (RS232 or RS485) implement and support the Modbus RTU protocol.

Ever Motion Solutions has been one of the first companies in the world to implement and validate the CANopen protocol and the DSP402 on its drives for stepper motors and brushless motors, starting from the early ‘90s.

CANopen is a standard communication protocol widely used in the industrial automation fields. First developed for use with CAN fieldbus, it has also been applied to other types of fieldbuses such as Ethercat CoE.

Thanks to the ELSE technology integrated in the Ever Motion Solutions drives motors current control is so high that vibrations, resonances and noises don’t exist anymore.
